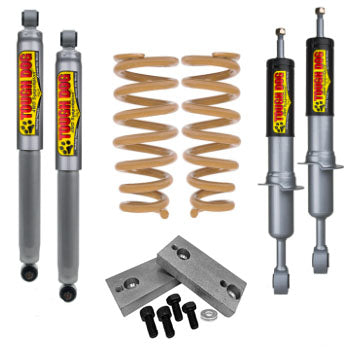

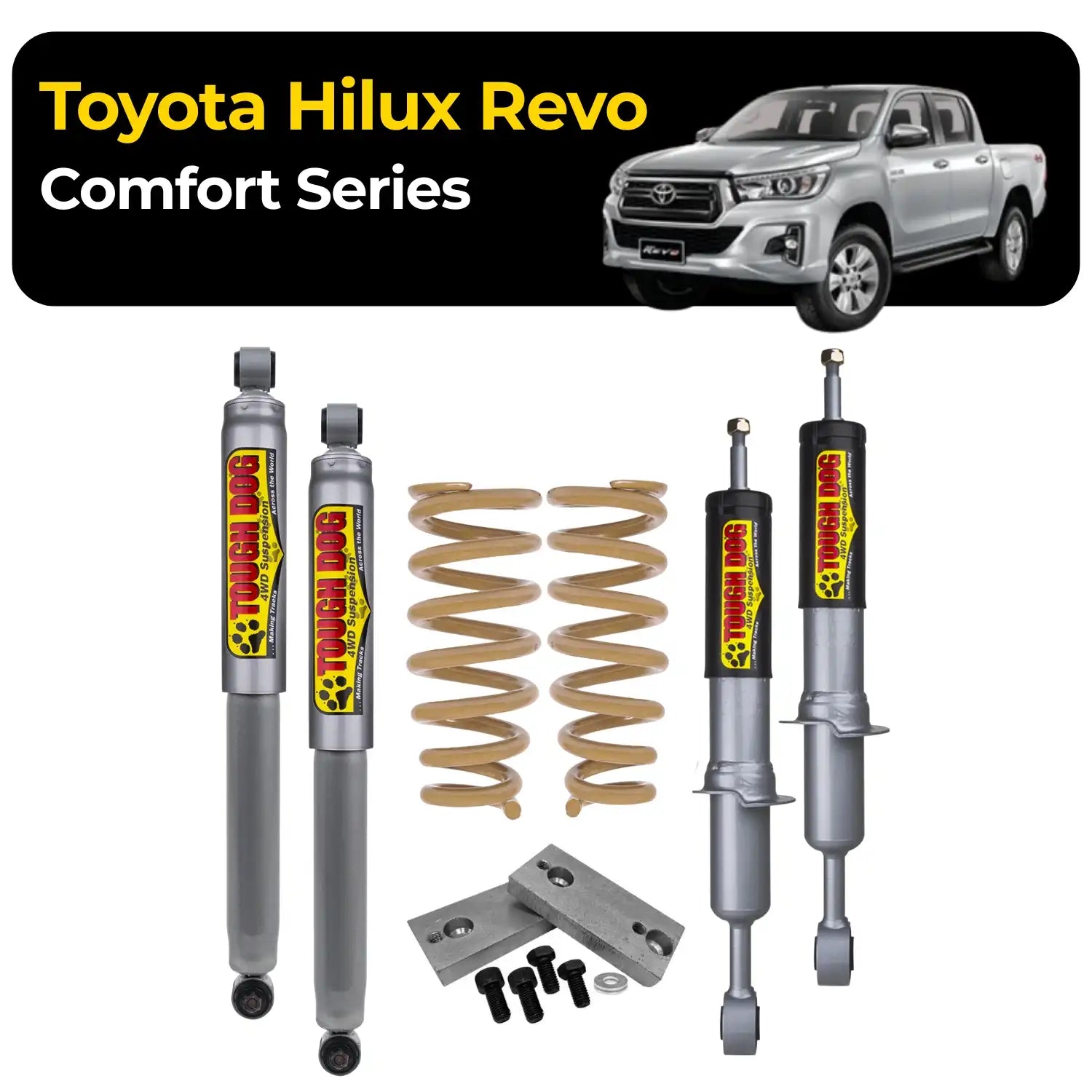

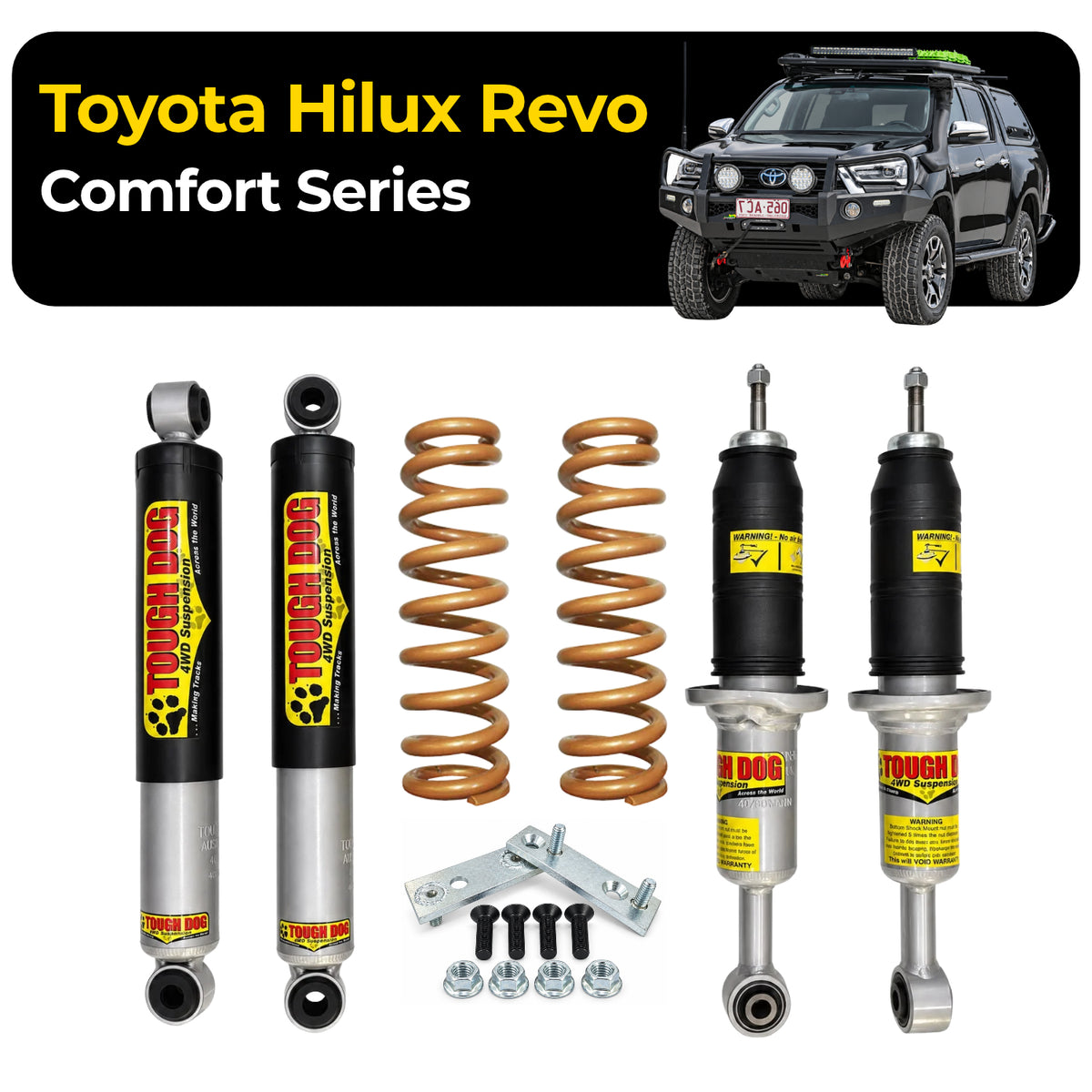

Tough Dog Suspension - Toyota Hilux Revo - 40mm Lift Foam Cell Kit with Super Soft Rear - Comfort Series

Kit Components

• Foam Cell Strut (FRONT) FC404600 x 2
• Foam Cell Shock Absorber (REAR) FC43036 x 2
• Coil Springs (Pair) (FRONT) TDC974H x 1
• Sway Bar Spacer kit - 86mm hole spacing TDSP-023 x 1

Foam Cell Strut (FRONT) FC404600 Specifications

• Large 41mm internal bore
• Twin tube design
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

Foam Cell Shock Absorber (REAR) FC43036 Specifications

• Twin tube design
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

Coil Springs (Pair) (FRONT) TDC974H Specifications

• Shot peened to relieve stress
• Scragged and load tested
• Formed on precision mandrels
• Hot formed to maintain spring memory
• Powder-coated finished for looks and corrosion resistance

Sway Bar Spacer kit - 86mm hole spacing TDSP-023

When fitting a suspension lift kit, it is often necessary to fit additional components to ensure a seamless result with the modified suspension.

This front sway bar relocation spacer is required to provide sufficient clearance between the front strut and front sway bar.

Hole Spacing: 86mm
Required for vehicles with raised suspension.
