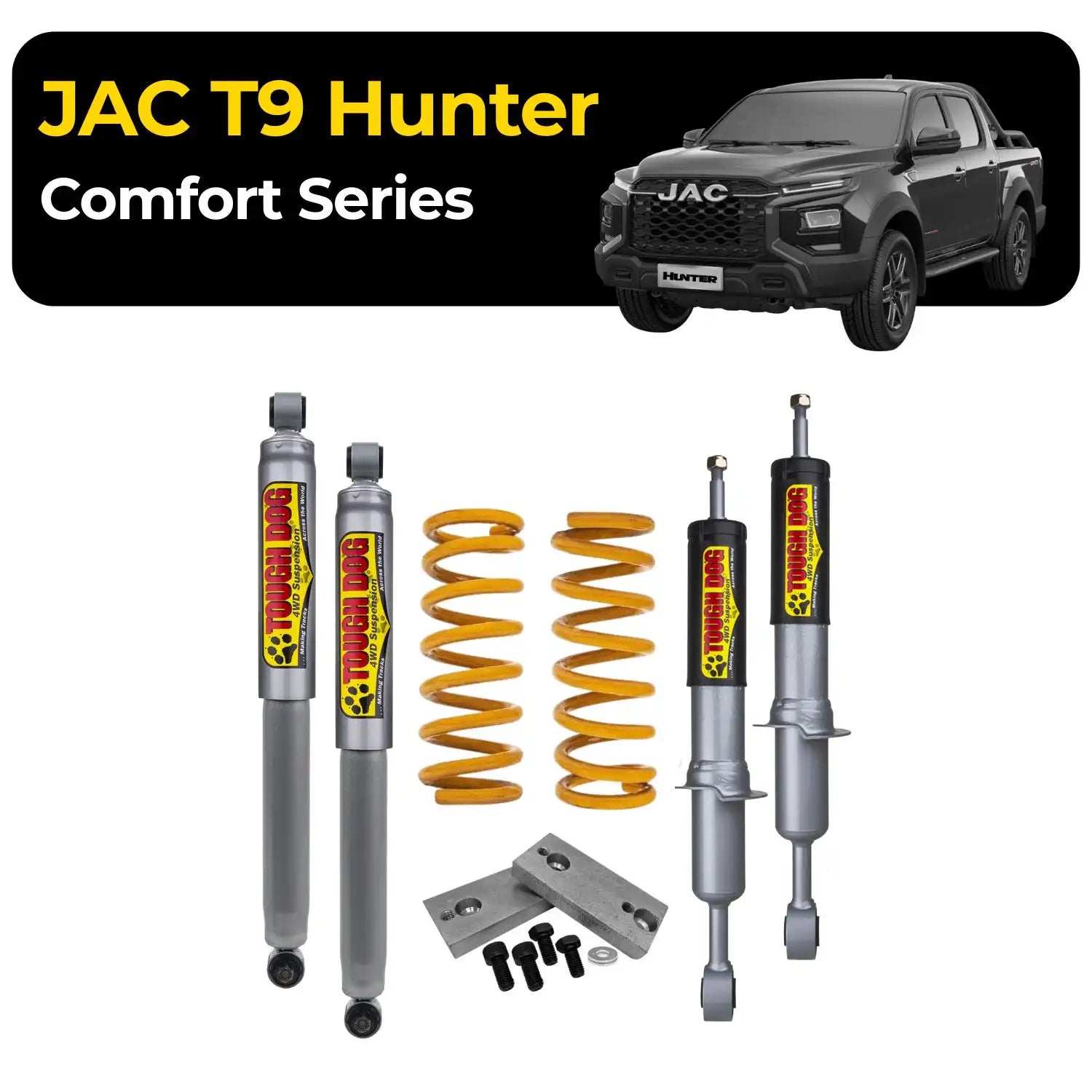

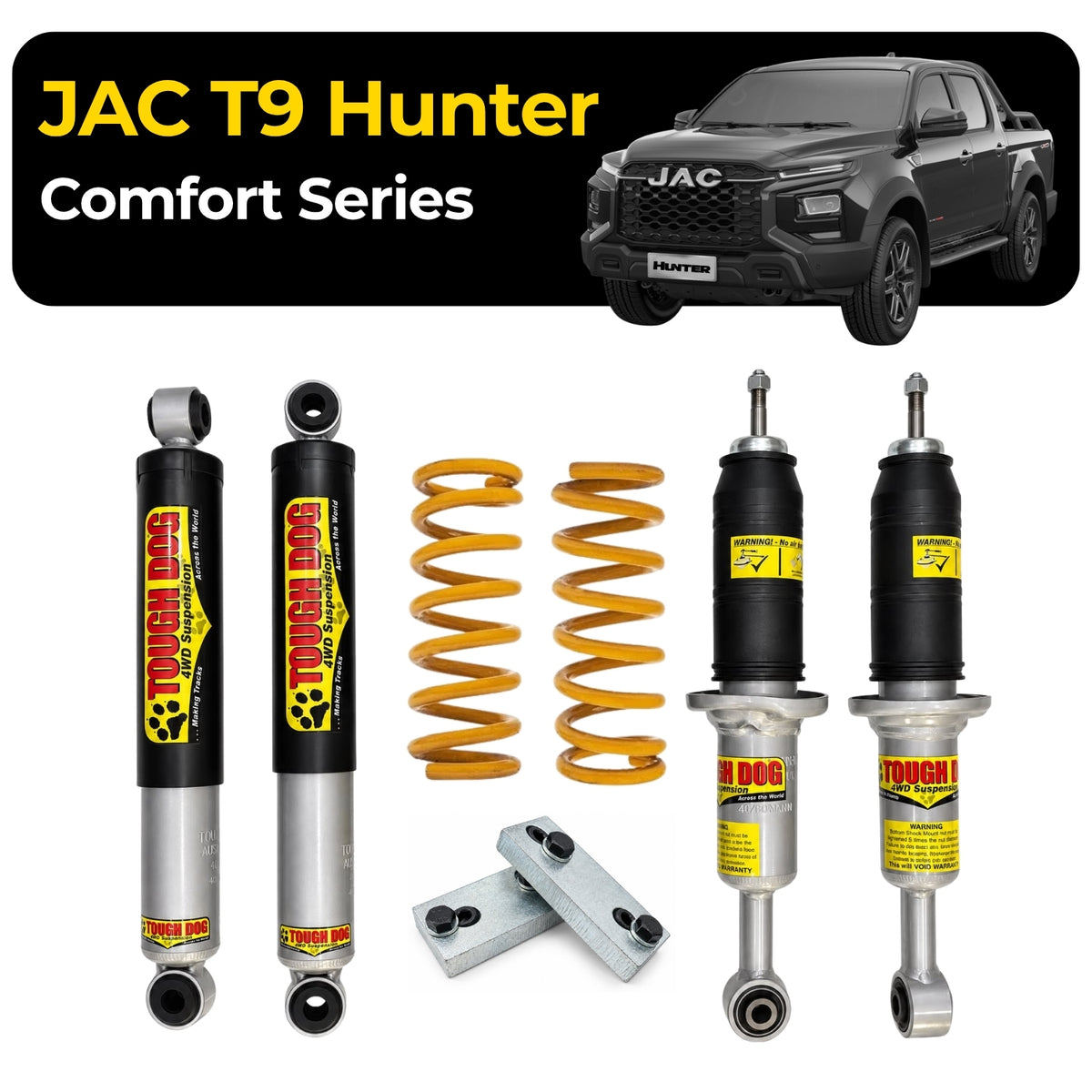

Tough Dog Suspension For JAC T9 Hunter- 40mm Lift Comfort Series

Kit Components

• Foam Cell Strut (FRONT) FC404600 x 2
• Foam Cell Shock Absorber (REAR) FC43036 x 2
• Coil Springs (Pair) (FRONT) TDC 974 x 1
• Sway Bar Spacer kit - 76mm hole spacing TDSP-011 x 1

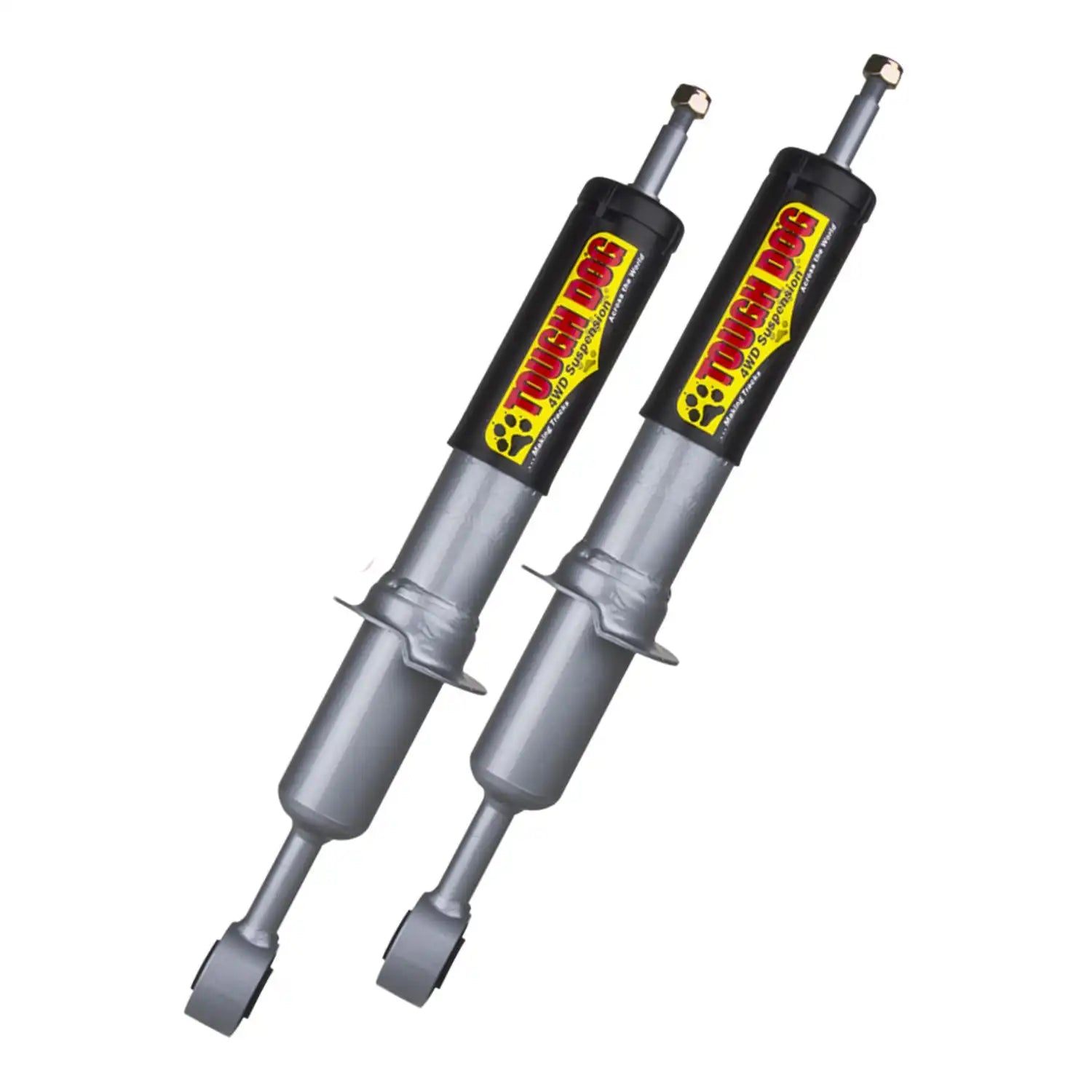

Foam Cell Strut (FRONT) FC404600 Specifications

• Large 41mm internal bore
• Twin tube design
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

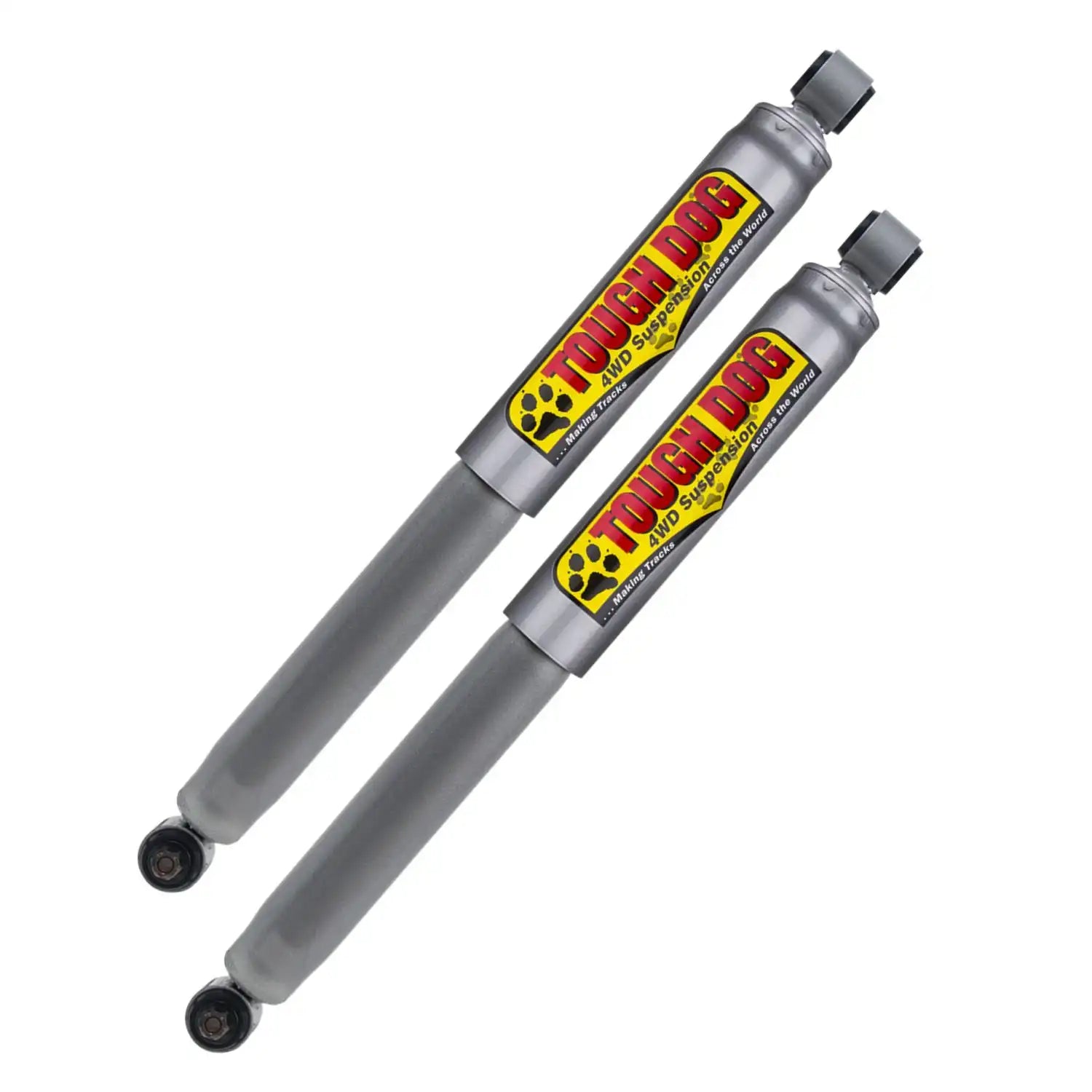

Foam Cell Shock Absorber (REAR) FC43036 Specifications

• Twin tube design
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

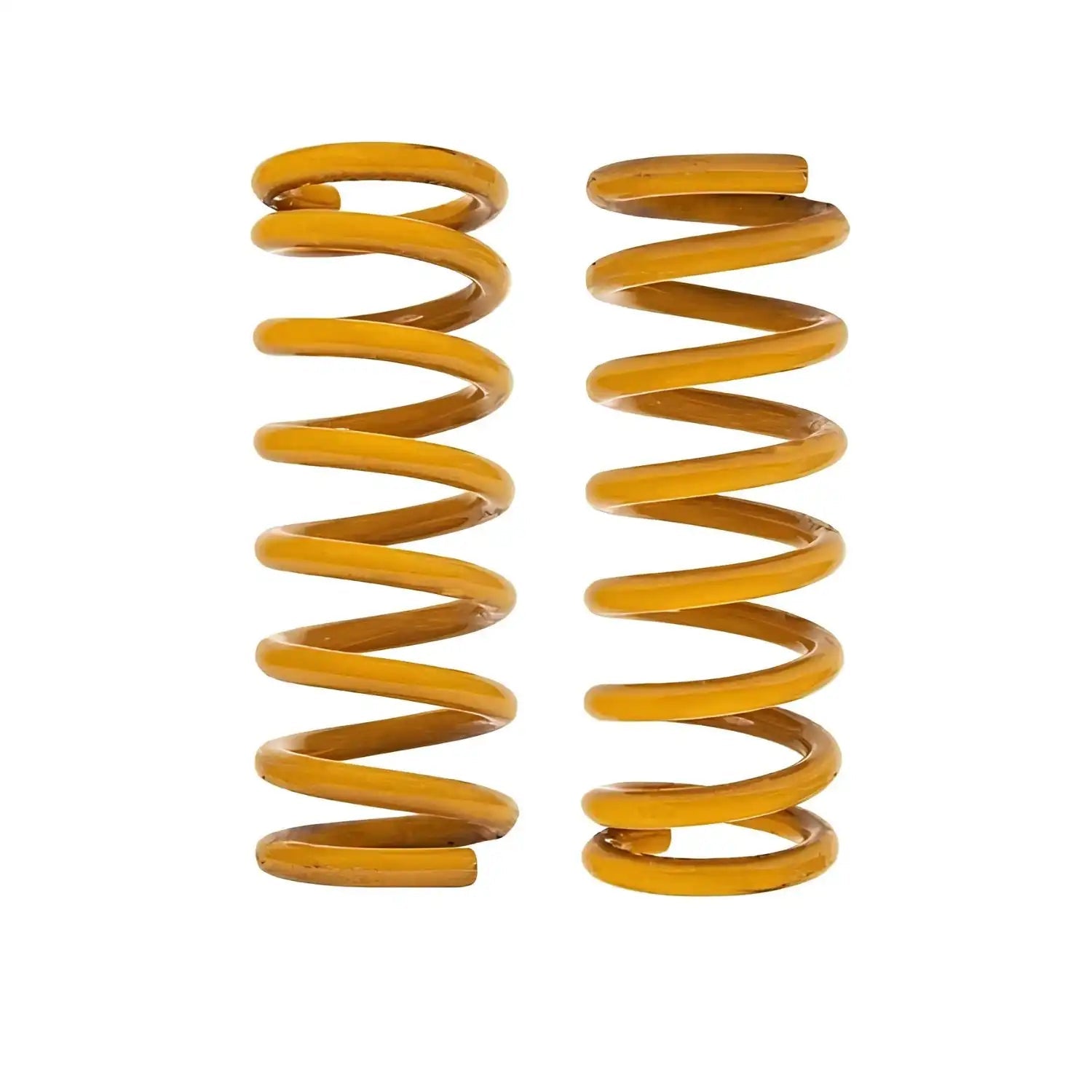

Coil Springs (Pair) (FRONT) TDC 974 Specifications

• Shot peened to relieve stress
• Scragged and load tested
• Formed on precision mandrels
• Hot formed to maintain spring memory
• Powder-coated finished for looks and corrosion resistance

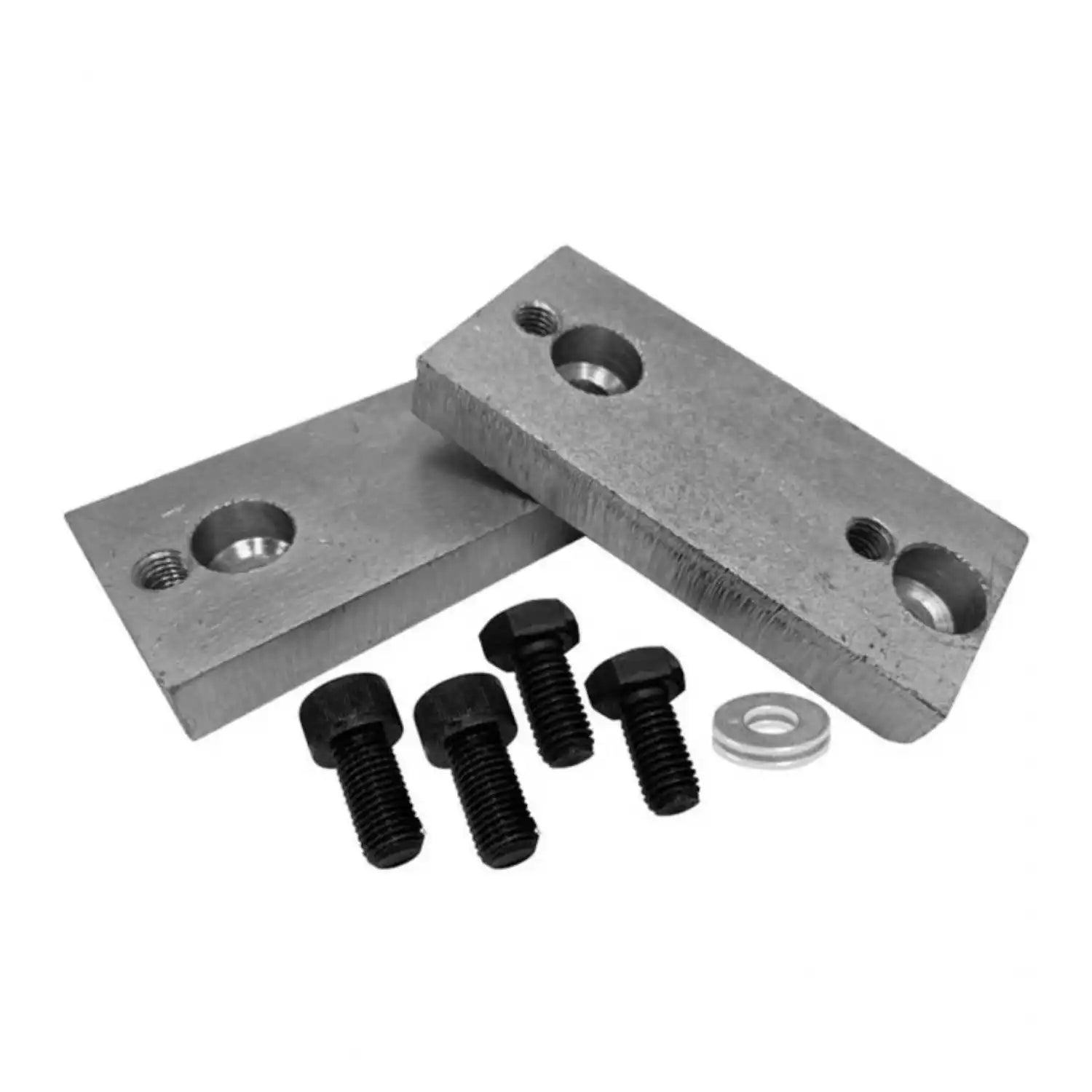

Sway Bar Spacer kit - 76mm hole spacing TDSP-011

When fitting a suspension lift kit, it is often necessary to fit additional components to ensure a seamless result with the modified suspension.

This front sway bar relocation spacer is required to provide sufficient clearance between the front strut and front sway bar.

Hole Spacing: 76mm
Required for vehicles with raised suspension.
