Kings 12V Battery Monitor | Easy DIY Install | Adjustable Low-Voltage Cut off | LCD Display
Kings 12V Battery Monitor | Easy DIY Install | Adjustable Low-Voltage Cut off | LCD Display
Regular price
Rs.24,000.00
Regular price
Sale price
Rs.24,000.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Battery Monitor and low voltage disconnect in one
- Monitor voltage, current in/out and remaining battery % at a glance
- User selectable current cut-off up to 100 Amps
- Ultra-low standby current draw and manual ‘off’ function
- Fully user programmable with automatic reconnect
- Easy DIY install with colour coded wires
BATTERY MONITOR
LOW VOLTAGE DISCONNECT IN ONE
With the Adventure Kings 12V Battery Monitor (*PATENT APPLIED FOR) you can easily keep an eye on and control the power coming in and out of your auxiliary battery. Designed, engineered and rigorously tested by IntelliQuip Solutions; the same Aussie engineering team that developed the Adventure Kings DC-DC chargers, this is a smart bit of kit that is easy to install and instantly takes your 12V system to the next level.
MONITOR VOLTAGE
First it gives you an instant read out of the battery voltage and the amount of current (in amps) that is either being charged into your battery or is coming out of your battery to power gear like fridges, camp lighting or other 12V Accessories
LOW VOLTAGE DISCONNECT IN ONE
With the Adventure Kings 12V Battery Monitor (*PATENT APPLIED FOR) you can easily keep an eye on and control the power coming in and out of your auxiliary battery. Designed, engineered and rigorously tested by IntelliQuip Solutions; the same Aussie engineering team that developed the Adventure Kings DC-DC chargers, this is a smart bit of kit that is easy to install and instantly takes your 12V system to the next level.
MONITOR VOLTAGE
First it gives you an instant read out of the battery voltage and the amount of current (in amps) that is either being charged into your battery or is coming out of your battery to power gear like fridges, camp lighting or other 12V Accessories
FULLY USER PROGRAMMABLE
WITH AUTOMATIC RECONNECT
To prevent battery damage and over discharge it has a built in low voltage disconnect too. That means that if your accessories draw too much power out of the battery, it will disconnect them until the battery recovers or recharges – at that point it will automatically reconnect so your accessories continue working properly.
CURRENT IN/OUT AND REMAINING BATTERY %
It’s smart too and calculates the sum of the current. So, if your solar is providing 10 amps, but your accessories are drawing 2 amps, it will display 8 amps! This makes it easy to ensure your system is working correctly and you’re not over discharging your battery.
OVER-VOLTAGE PROTECTION
It also has an over-voltage protection setting to protect your batteries from over-charging – and importantly all the parameters can be changed – so you can set the low point, recovery point and high voltage point to suit your setup. No more relying on a pre-set low voltage that’s way too low and risks permanently damaging your batteries!
USER SELECTABLE CURRENT CUT-OFF
UP TO 100 AMPS
It also features an over current cut-off that you can set between 5 and 100 amps – this is ideal for preventing your battery being discharged too much or too quickly due to appliance faults or short circuits.
UP TO 360AH CAPACITY
The Adventure Kings Battery Monitor suits batteries or battery banks between 80 and 360AH capacity. Plus, there are selectable profiles for lead acid, AGM or calcium battery types which allow the Battery Monitor to display an estimate of the remaining battery capacity with an easy percentage displayed on screen.
ULTRA-LOW STANDBY CURRENT DRAW
AND MANUAL ‘OFF’ FUNCTION
Built into a tough and compact housing that’s able to work in harsh conditions from -10 to 60°C, as well as offering an easy to diagnose LED status indicator and very low standby power use (with a built in, programmable sleep mode that turns off screen illumination), this is the ideal way to monitor and protect your 12V setup!
To prevent battery damage and over discharge it has a built in low voltage disconnect too. That means that if your accessories draw too much power out of the battery, it will disconnect them until the battery recovers or recharges – at that point it will automatically reconnect so your accessories continue working properly.
CURRENT IN/OUT AND REMAINING BATTERY %
It’s smart too and calculates the sum of the current. So, if your solar is providing 10 amps, but your accessories are drawing 2 amps, it will display 8 amps! This makes it easy to ensure your system is working correctly and you’re not over discharging your battery.
OVER-VOLTAGE PROTECTION
It also has an over-voltage protection setting to protect your batteries from over-charging – and importantly all the parameters can be changed – so you can set the low point, recovery point and high voltage point to suit your setup. No more relying on a pre-set low voltage that’s way too low and risks permanently damaging your batteries!
USER SELECTABLE CURRENT CUT-OFF
UP TO 100 AMPS
It also features an over current cut-off that you can set between 5 and 100 amps – this is ideal for preventing your battery being discharged too much or too quickly due to appliance faults or short circuits.
UP TO 360AH CAPACITY
The Adventure Kings Battery Monitor suits batteries or battery banks between 80 and 360AH capacity. Plus, there are selectable profiles for lead acid, AGM or calcium battery types which allow the Battery Monitor to display an estimate of the remaining battery capacity with an easy percentage displayed on screen.
ULTRA-LOW STANDBY CURRENT DRAW
AND MANUAL ‘OFF’ FUNCTION
Built into a tough and compact housing that’s able to work in harsh conditions from -10 to 60°C, as well as offering an easy to diagnose LED status indicator and very low standby power use (with a built in, programmable sleep mode that turns off screen illumination), this is the ideal way to monitor and protect your 12V setup!
TECHNICAL SPECIFICATIONS

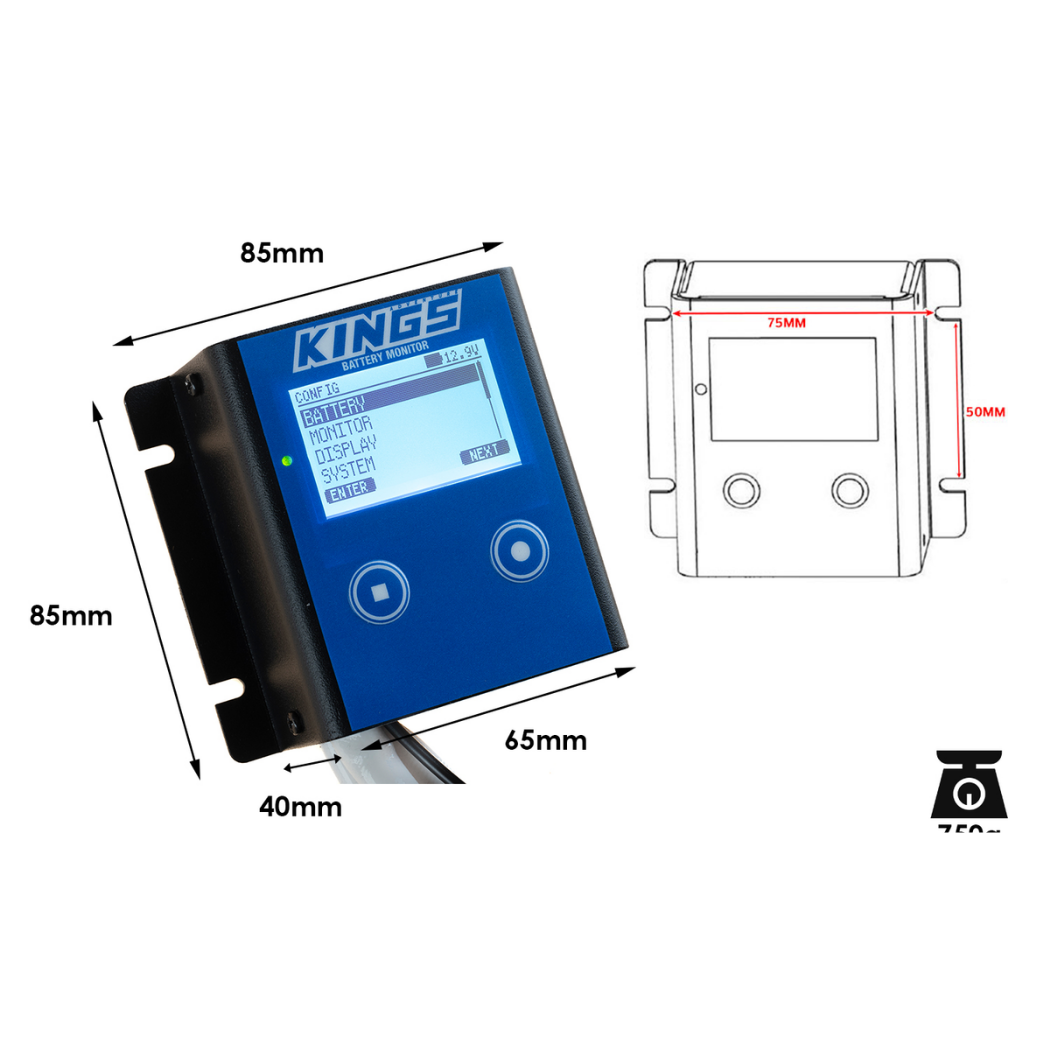

- Size: 9cm x 8cm x 4cm
- Operating temperature -10oC – 60oC
- Auto over current shut off Set by user: 5 –100A
- Auto over-voltage shut off
- Set by user: 14.2 V – 17.2V
- Auto low voltage shut off
- Set by user: 10.5 V – 12.5V.
- Auto reconnect voltage
- Set by user: 11.0 V – 12.8V
