Tough Dog Suspension - Toyota Hilux Revo - Foam Cell Shocks 9 Step Adjustable - Comfort Series
Tough Dog Suspension - Toyota Hilux Revo - Foam Cell Shocks 9 Step Adjustable - Comfort Series
Couldn't load pickup availability

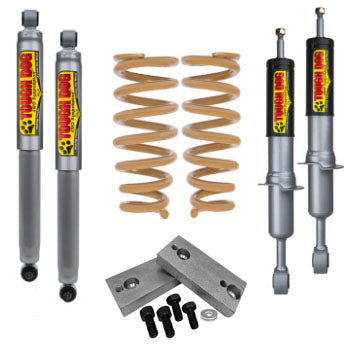

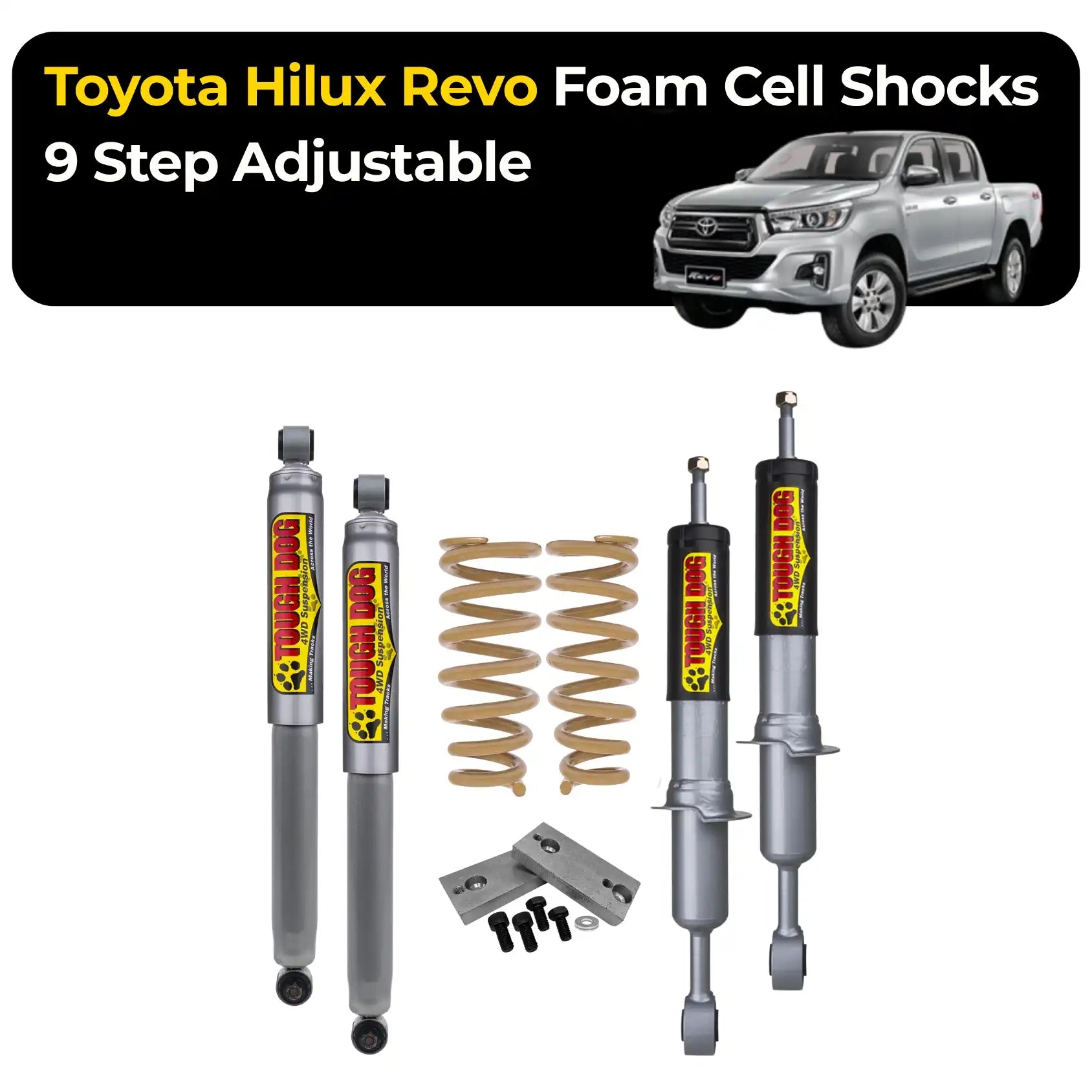

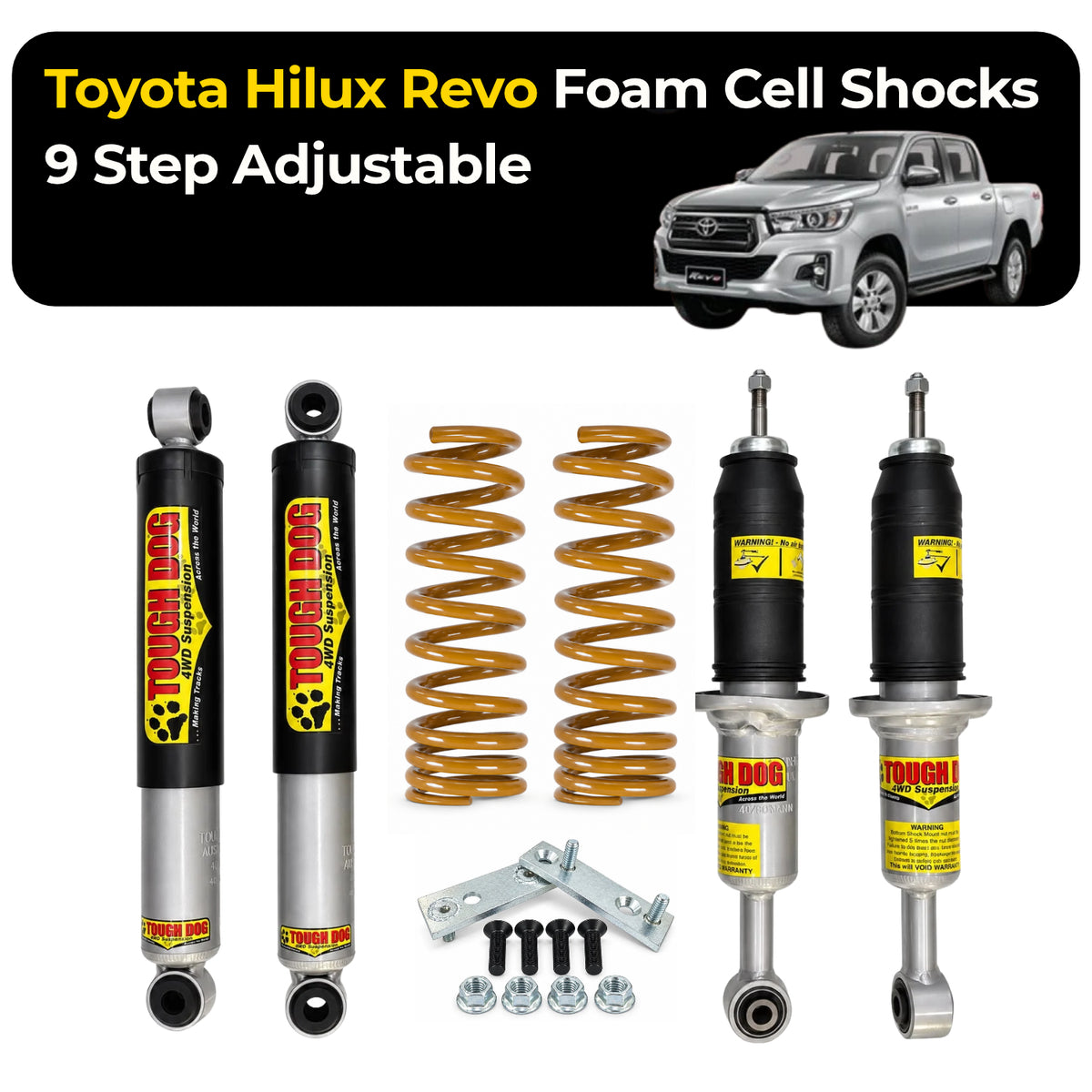

Kit Components
- 40mm Adjustable Strut (FRONT) BM404600 x 2
- 40mm Adjustable Shock Absorber (REAR) BM401376 x 2
- Coil Springs (Pair) (FRONT) TDC974 x 1
- Sway Bar Spacer kit- 76mm hole spa TDSP-011
40mm Adjustable Strut (FRONT) BM404600
- 60mm external casing
- 18mm chrome-plated rod
- High temperature, all weather oil
- Foam cell
- 9 Stage external adjustment
- Additional welding on all studs and eye rings
40mm Adjustable Shock Absorber (REAR) BM401376
- 40mm internal bore
- 60mm external casing
- 18mm chrome-plated rod
- High temperature, all weather oil
- Foam cell
- 9 Stage external adjustment
- Additional welding on all studs and eye rings
Coil Springs (Pair) (FRONT) TDC974
Tough Dog coil springs are designed and manufactured in Australia to exacting standards to stand up to some of the harshest conditions found anywhere in the world.
Made from German X5K spring steel, our coils can be designed with less material while maintaining superior ride quality & load carrying characteristics. The spring retains its original memory even after heavy loading. Shot peened to relieve stress, scragged and load tested, hot formed to maintain spring memory and a power-coated finish for looks and corrosion resistance.
Approximate raised height: 40mm
Sway Bar Spacer kit- 76mm hole spa TDSP-011
When fitting a suspension lift kit, it is often necessary to fit additional components to ensure a seamless result with the modified suspension.
This front sway bar relocation spacer is required to provide sufficient clearance between the front strut and front sway bar.
