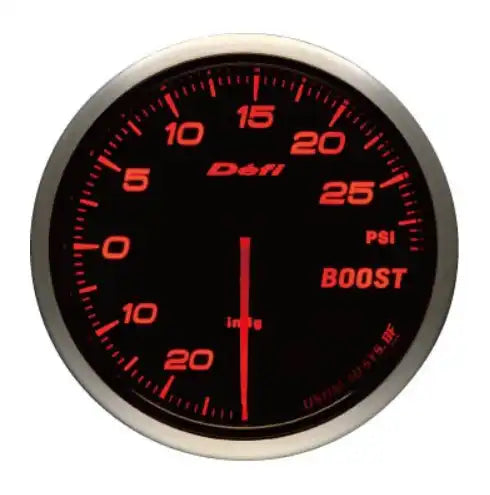

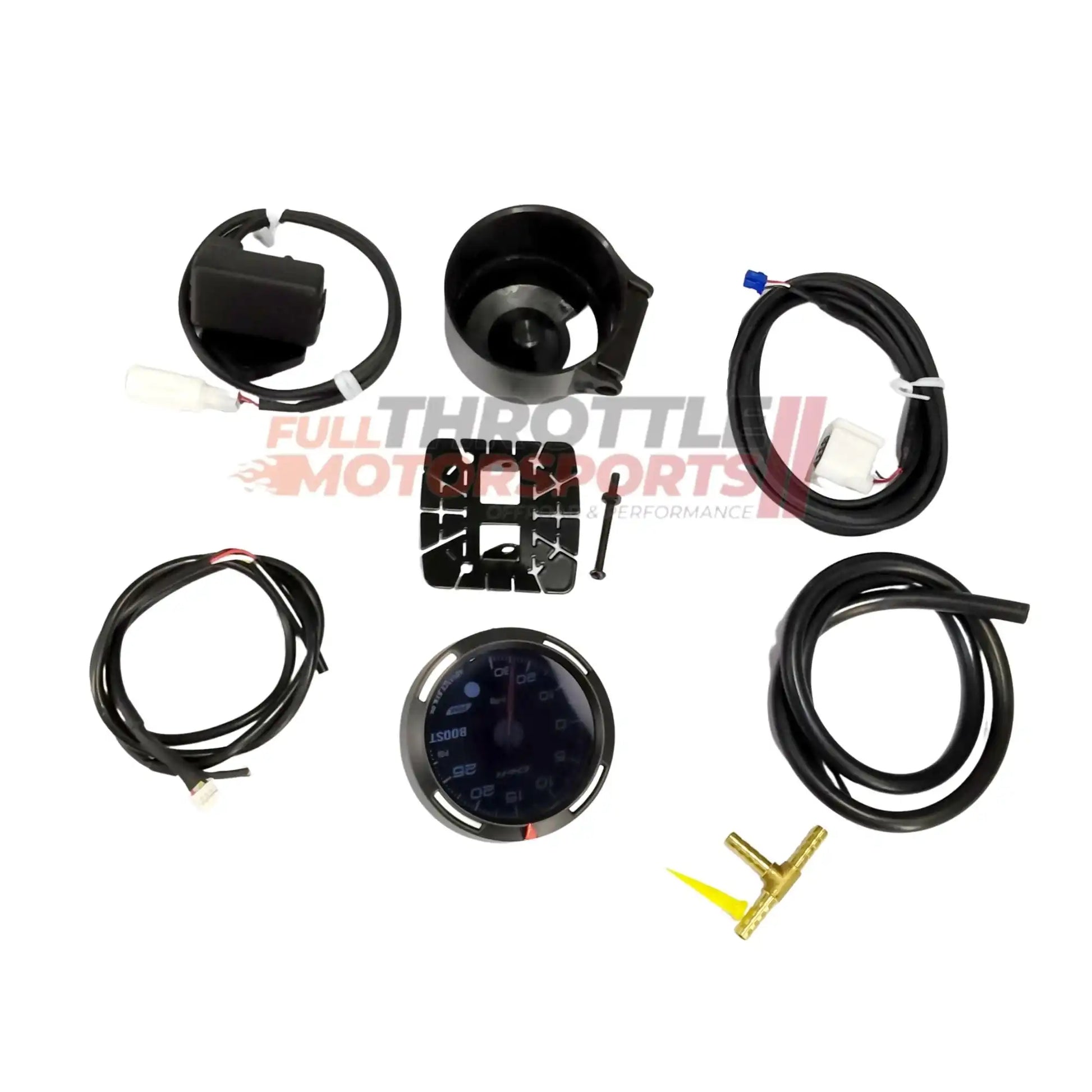

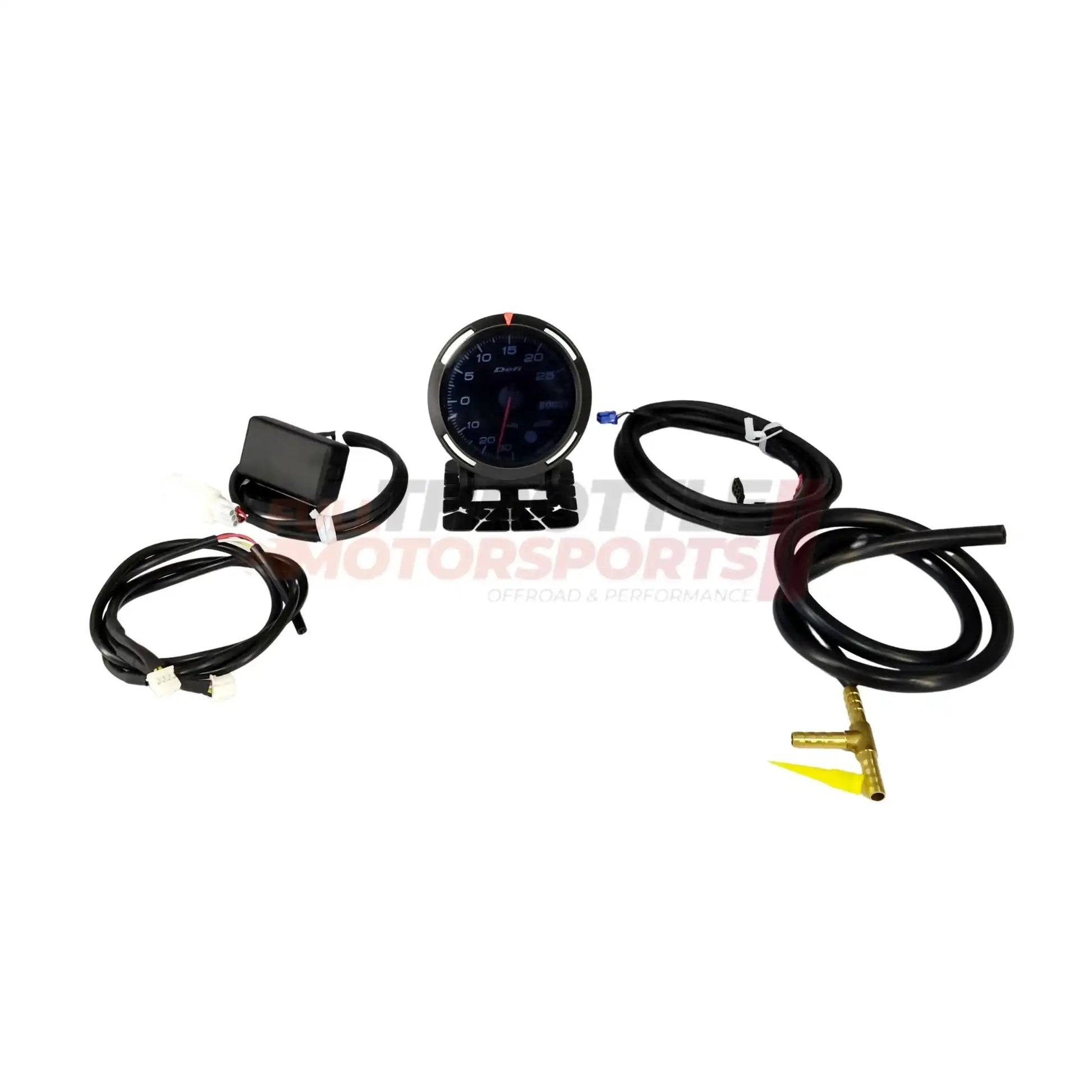

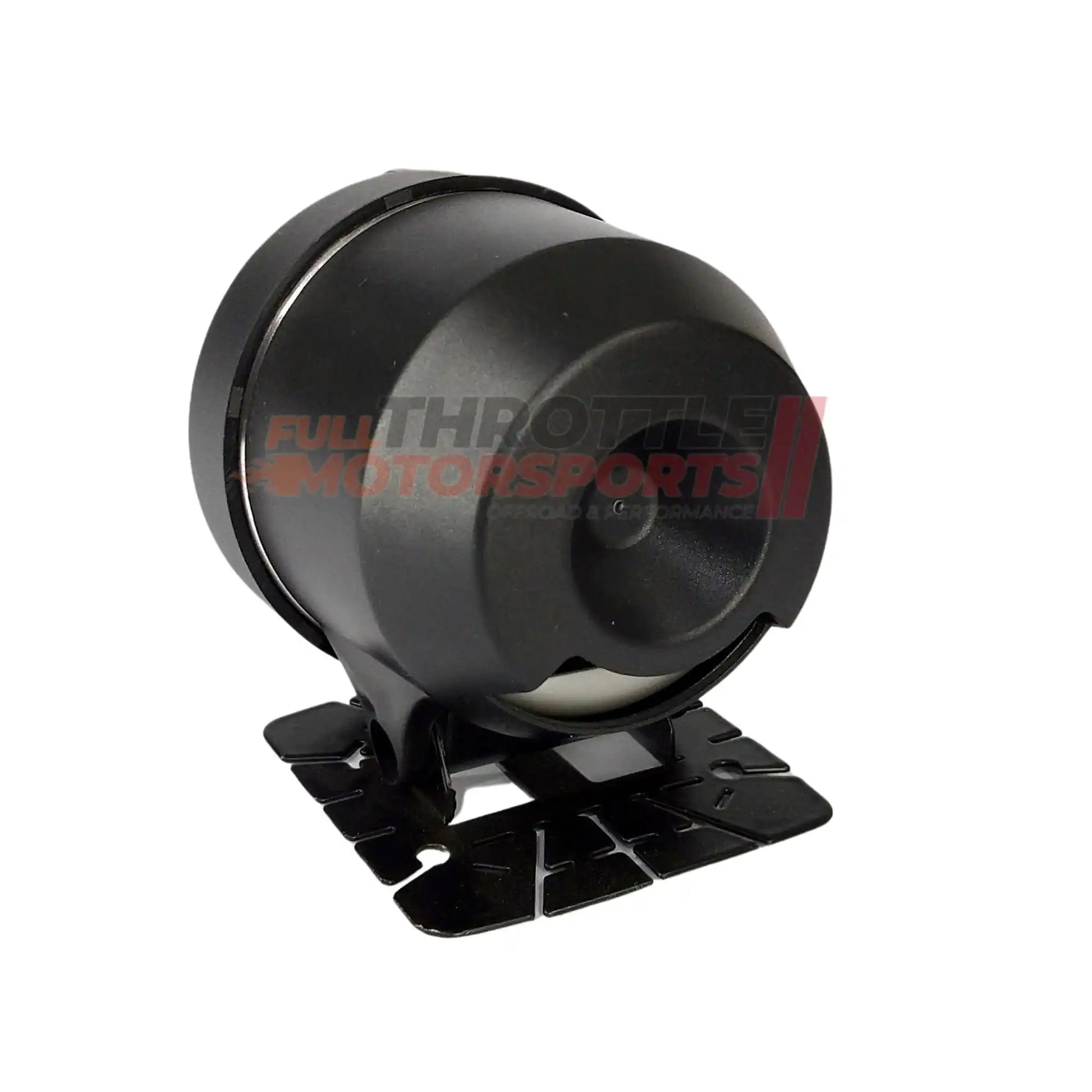

1. Stepper Motor is more fast, accurate. 2. Gauge dial is invisible while the ignition switch is off. When the switch is turned on, a clear white LED display brightness, red emitting needle pointer increases visibility. 3. Power Source 12V 4. This is a universal meter gauge that can be used in any Turbo Vehicle 5. The Turbo Boost Sensor is included in the Package
Main Features
The opening mode and ending mode can be selected from five variations.
A warning value (arbitrary) can be set and the warning buzzer can be selected from three variations or turn off.
The buzzer can be selected in three loud levels.
7 Colors backlights can be selected.
Flat glass, high-definition scale and long, narrow pointer provides accurate indication and high visibility.
Brushless stepping motor is used to enable a smooth, instantaneous response to high performance sport driving.
Data obtained during driving (peak value and warning value) can be stored up, and the peak value can be reviewed and cleared
Product Specification
Power-supply voltage: 10V to 15V DC(12V vehicles only)
Current consumption:
+B line: MAX 120mA
IGN line: MAX 120mA
ILM line: MAX 2mA
Warning ● This product is designed for use on 12V vehicles. Do not install this product on vehicles with 24V systems. ● Have this product installed by the retail store or dealer where it was purchased. Installation by the customer will void the warranty. ● Do not disassemble or modify this product. Such actions will not only void the warranty but also damage or destroy the product. ● Do not operate during driving. ● Do not perform installation of this product immediately after the engine has been switched off. The engine and exhaust system are extremely hot at this time and can cause burns if touched
