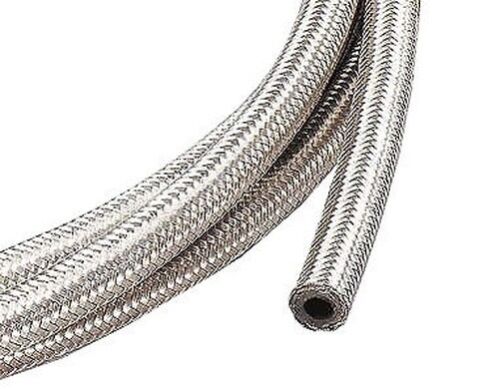

AN-8 Steel Braided Hose Pipe (M)

SPECIFICATION:

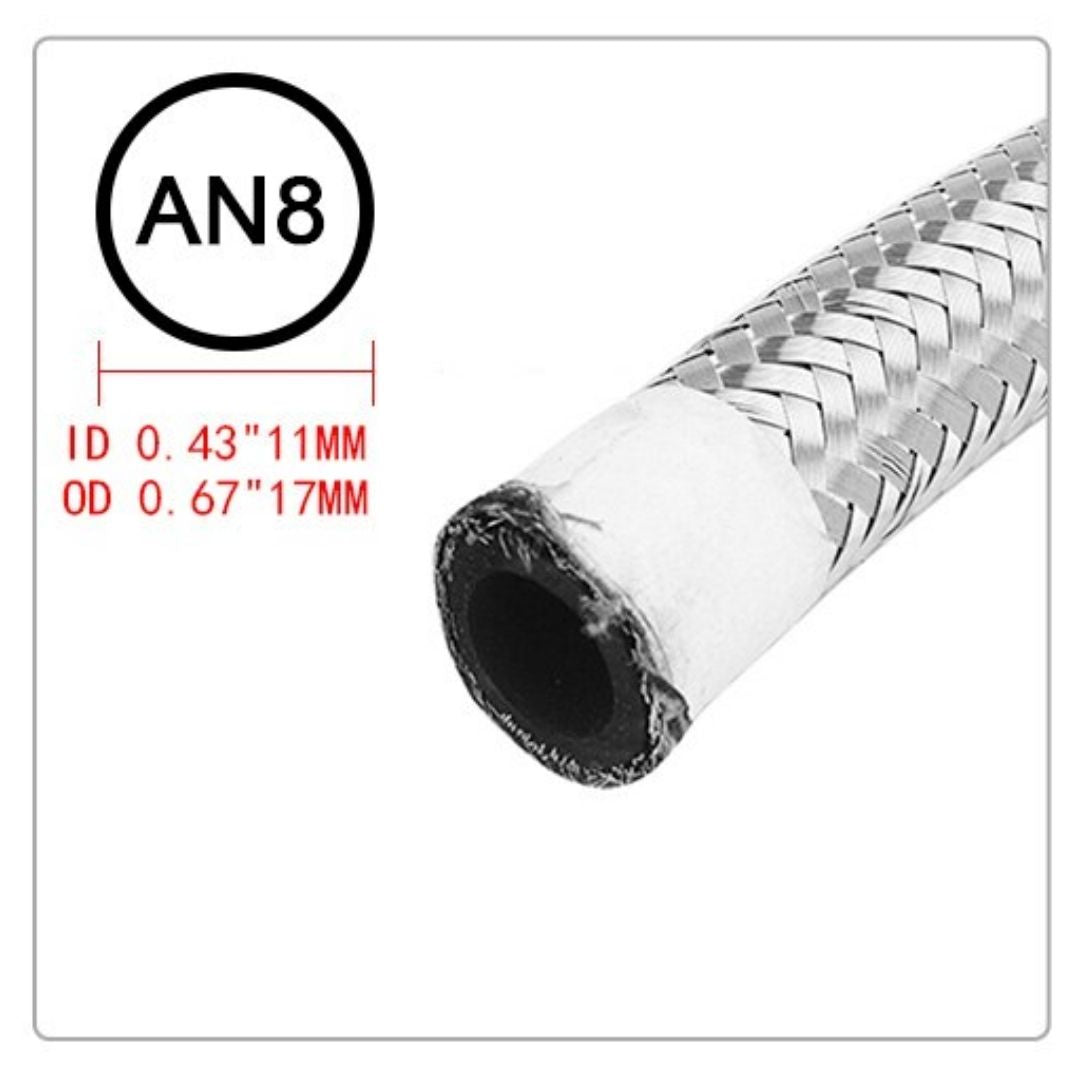

• Inner diameter: 11mm (+/- 0.4mm)
• Outer diameter: 17mm (+/- 0.7mm)
• Inner hose material: Nitrile Butadine Ribber, Shore hardness 70 +/- 5 (Shore A)
• Outer hose material: Grade 304 highly corrosion resistant stainless steel
• Wall thickness: 2.5mm
• Working pressure: 145 PSI (10 BAR MAXIMUM)
• Bursting Pressire: 725 PSI (50 BAR)
• Operating Temperature: -35° to + 90°

For use with fuel systems, methanol, oils, lubricants, coolant system and vacuum applications.

Suitable for fuel, oil and coolant fluids in auto/Car applications. This hose isn't suitable for brake fluid and is not to be used near extreme heat sources such as a  turbocharger.
