Tough Dog - Toyota Landcruiser 78 Series Troopcarrier 45mm Adjustable Shocks

Toyota Landcruiser 78 Series Troopcarrier

Front Lift: 50mm
Rear Lift: 50mm

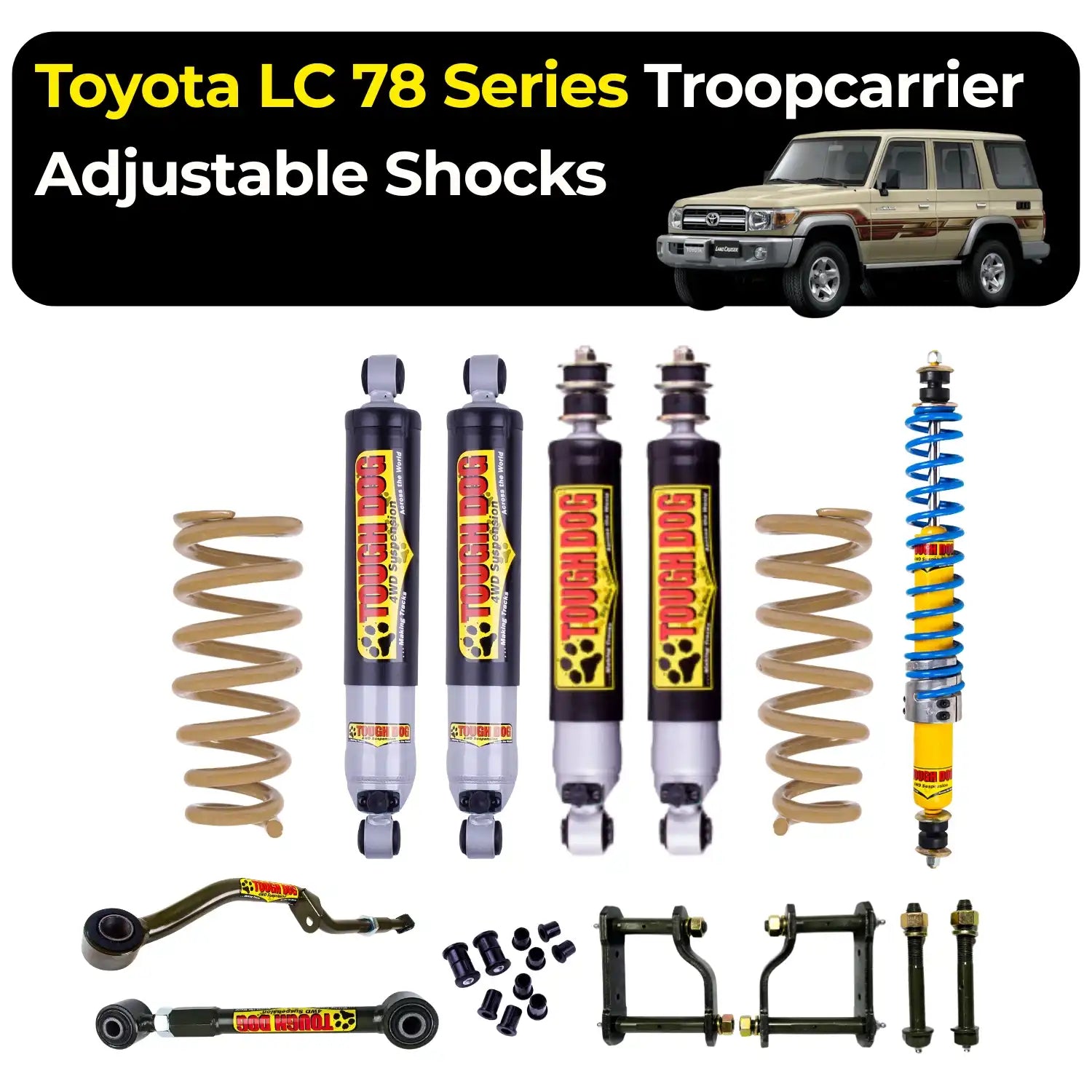

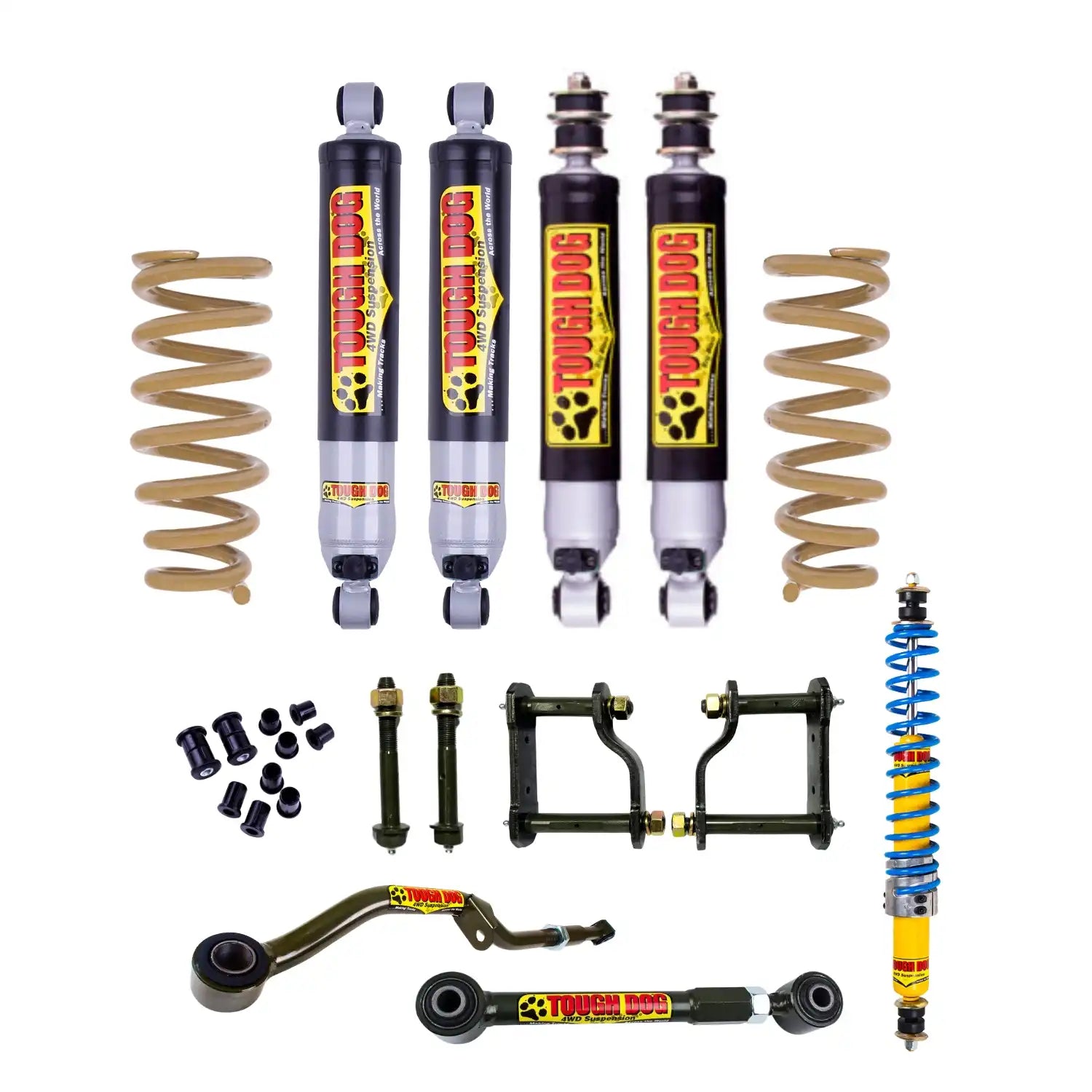

Kit Components

• 45mm Adjustable Shock Absorber (FRONT) BMX1050/2 x 2
• 45mm Adjustable Shock Absorber (REAR) BMX1377/2 x 2
• Coil Springs (Pair) (FRONT) TDC950HL x 1
• TDUK-048 x 1
• Greasable Pins/GREASABLE PINS REAR TDGP-388 x 1
• Greasable Shackles/GREASABLE SHACKLES REAR TDGS-387/18 x 1
• Handbrake Relocation Bracket TDSP-015 x 1
• Return to Centre Steering Damper SS5001-P/S
• Panhard Rod TDPR-079

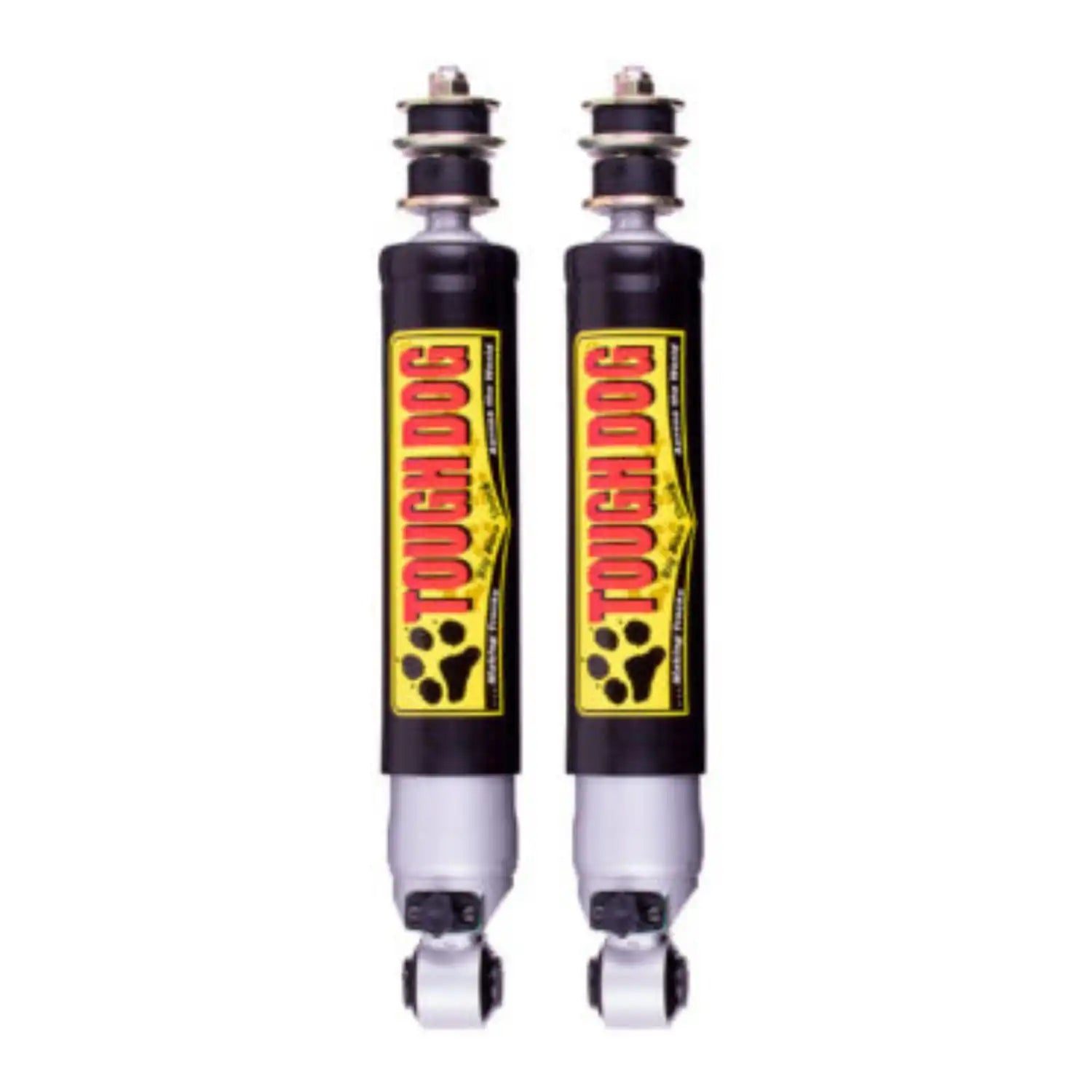

45mm Adjustable Shock Absorber (FRONT) BMX1050/2 Specifications

• 45mm internal bore
• 70mm external casing
• 22mm chrome plated rod
• High temperature, all weather oil
• Foam cell technology
• 9 Stage external adjustment
• Additional welding on all studs and eyerings

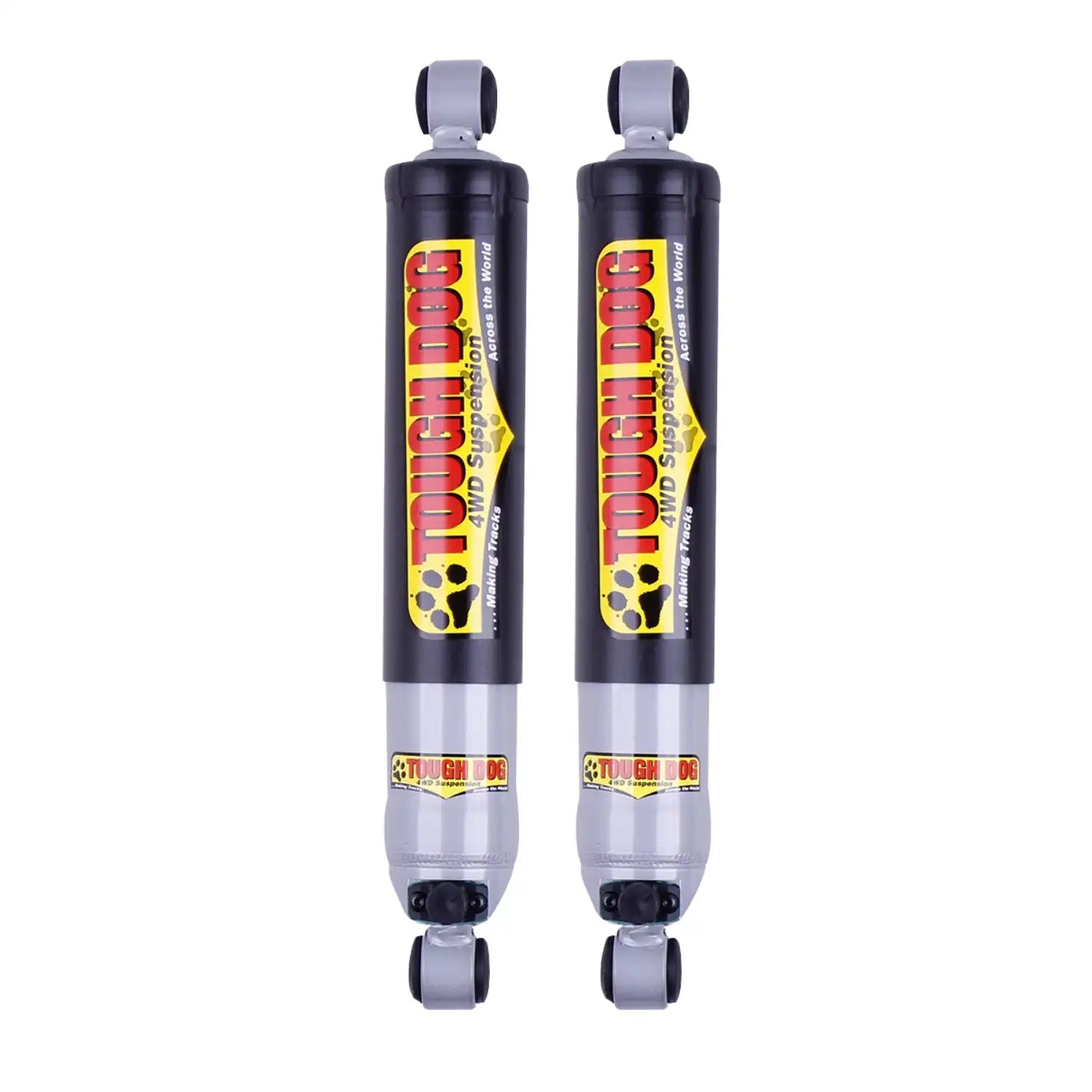

45mm Adjustable Shock Absorber (REAR) BMX1377/2 Specifications

• 45mm internal bore
• 70mm external casing
• 22mm chrome plated rod
• High temperature, all weather oil
• Foam cell technology
• 9 Stage external adjustment
• Additional welding on all studs and eyerings

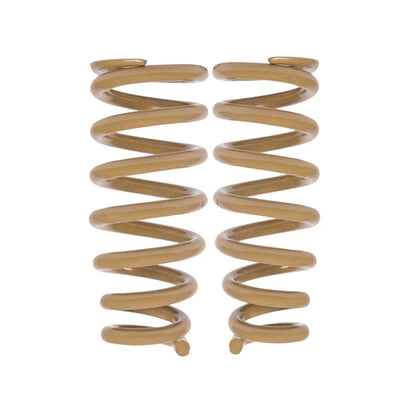

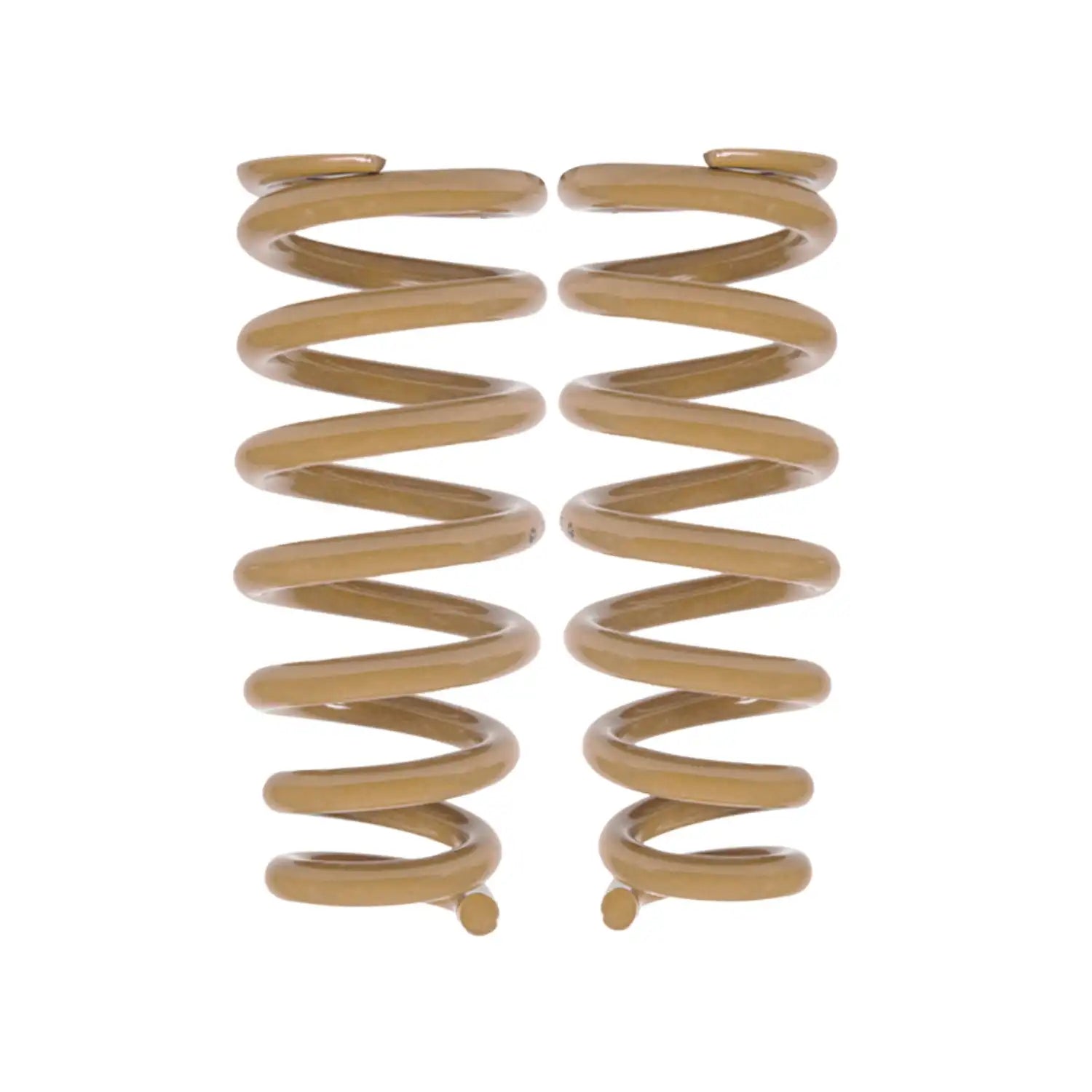

Coil Springs (Pair) (FRONT) TDC950HL Specifications

• Shot peened to relieve stress
• Scragged and load tested
• Formed on precision mandrels
• Hot formed to maintain spring memory
• Powder-coated finished for looks and corrosion resistance

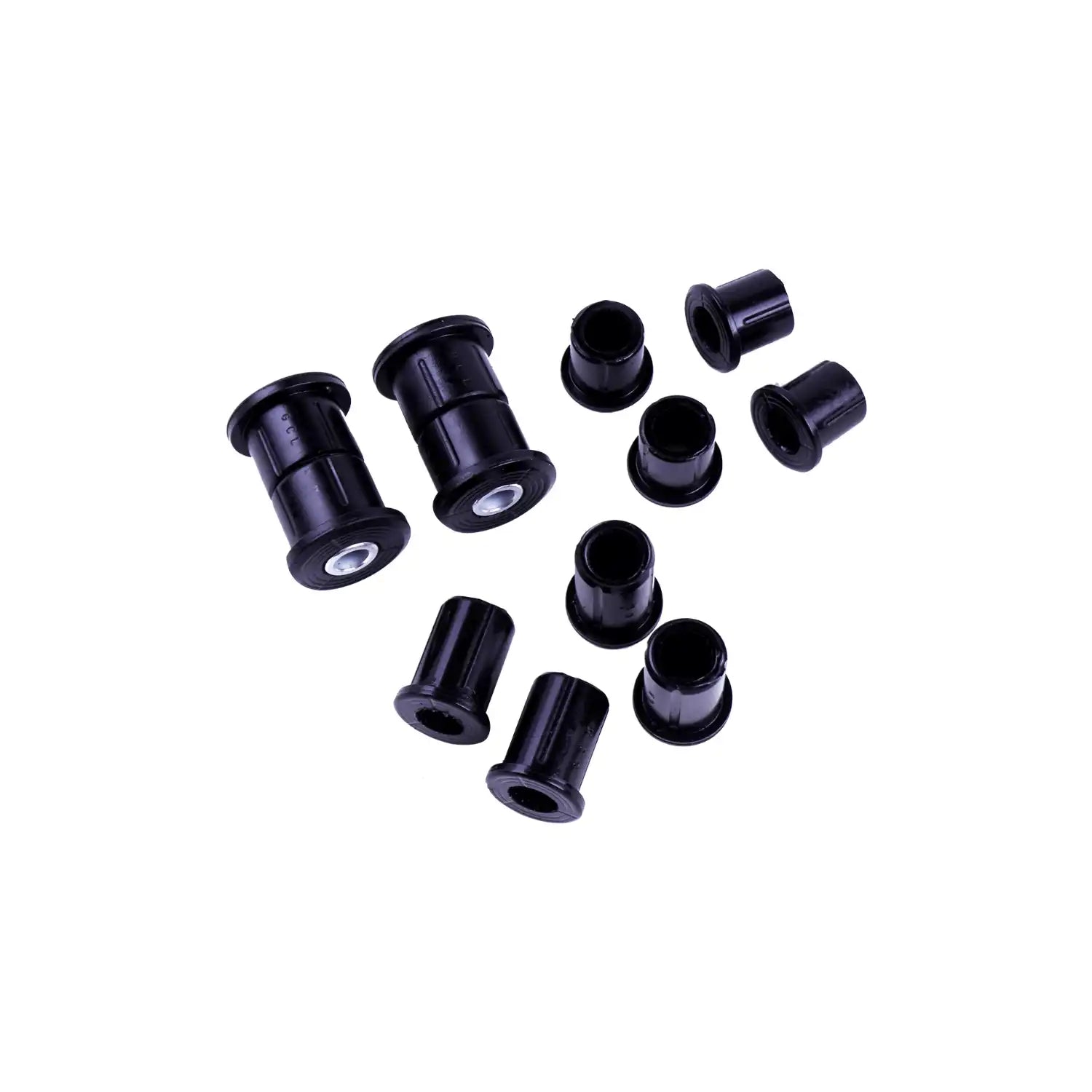

Tough Dog Rear Leaf Spring Bush Kit suitable for Landcruiser 76 78 79 Series from 1999 Specifications

This is a new quality aftermarket Tough Dog Leaf Spring Urethane Bush Kit
Suitable for Toyota Landcruiser HZJ78, HZJ79, HDJ78, HDJ79, VDJ76, VDJ78 and VDJ79 built from 8/1999 onwards
This is a complete set of Tough Dog Urethane shackle bushes suitable for the rear suspension leaf springs
Tough Dog urethane is stronger than rubber components and has greater longevity and resistance to deterioration from chemical exposure

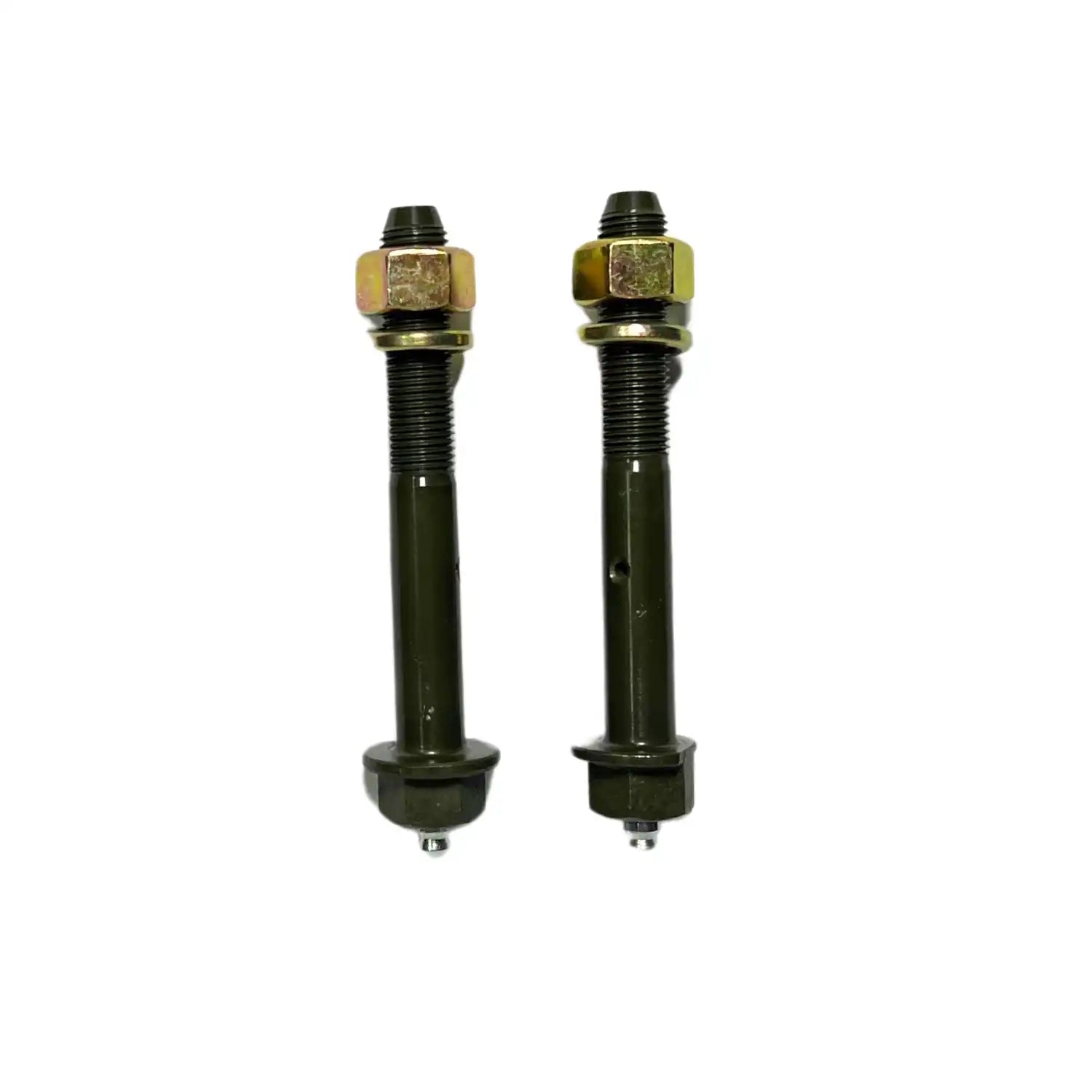

Greasable Pins/GREASABLE PINS REAR TDGP-388 Specifications

Greasable pins and shackles help protect the bushes from premature wear because of the ingress of dirt and grit. Applying grease through the nipple forces grease through the joint and out, taking with it foreign objects. Greasable components are particularly important to vehicles exposed to outback dust or high salt level environments like boat ramps and beach driving

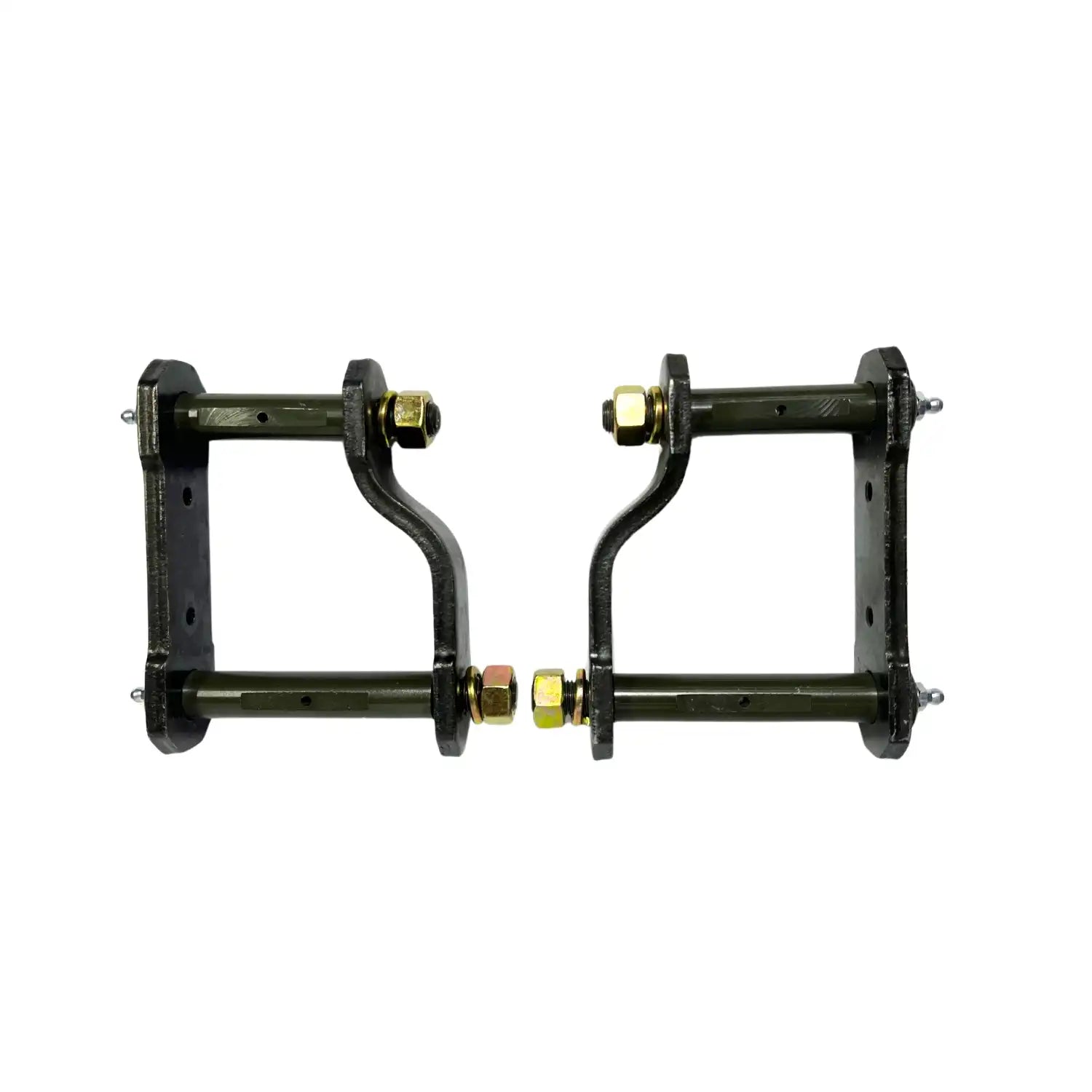

Greasable Shackles/GREASABLE SHACKLES REAR TDGS-387/18  Specifications

Regular lubrication is the key to prevent binding and to ensure optimum performance. With standard shackles, this is not usually practical, as the springs must be removed from the vehicle for the bushes to be serviced.

Tough dog Greasable shackles & pin kits eliminate this hassle. Just ten minutes is usually all that it takes to lubricate all the shackles and pins on your vehicle.

Handbrake Relocation Bracket TDSP-015 Specifications

When fitting a suspension lift kit, it is often necessary to fit additional components to ensure a seamless result with the modified suspension.

This Handbrake Relocation Bracket is required to space the handbrake cable away from the rear shock absorber when using aftermarket shocks with a wide body diameter.
Handbrake cable may be damaged if bracket is not installed.

Fitment Note
Fitment location is the rear of the vehicle.
Must be used with Tough Dog BMX 45mm Adjustable Shocks, Tough Dog Big Bore Ralph Shocks, Koni Raid Shocks and others with a large body diameter.

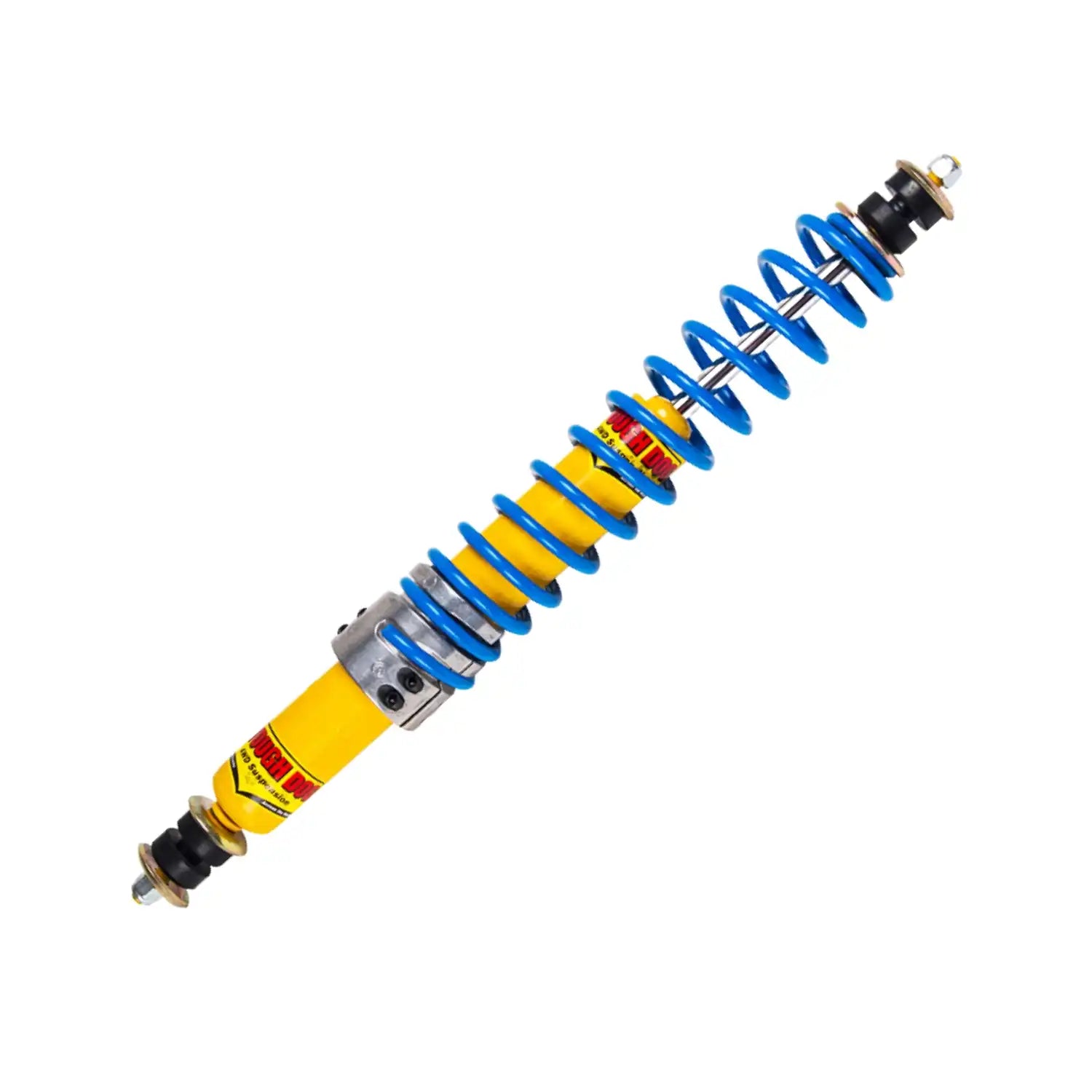

Return to Centre Steering Damper SS5001-P/S  Specifications

• Reduces shimmy and shake
• Reduces fatigue on a long drive as the coil steers you straight.
• Returns the steering wheel back to centre, especially when oversize tyres are fitted.
• Available for manual and power steer vehicles

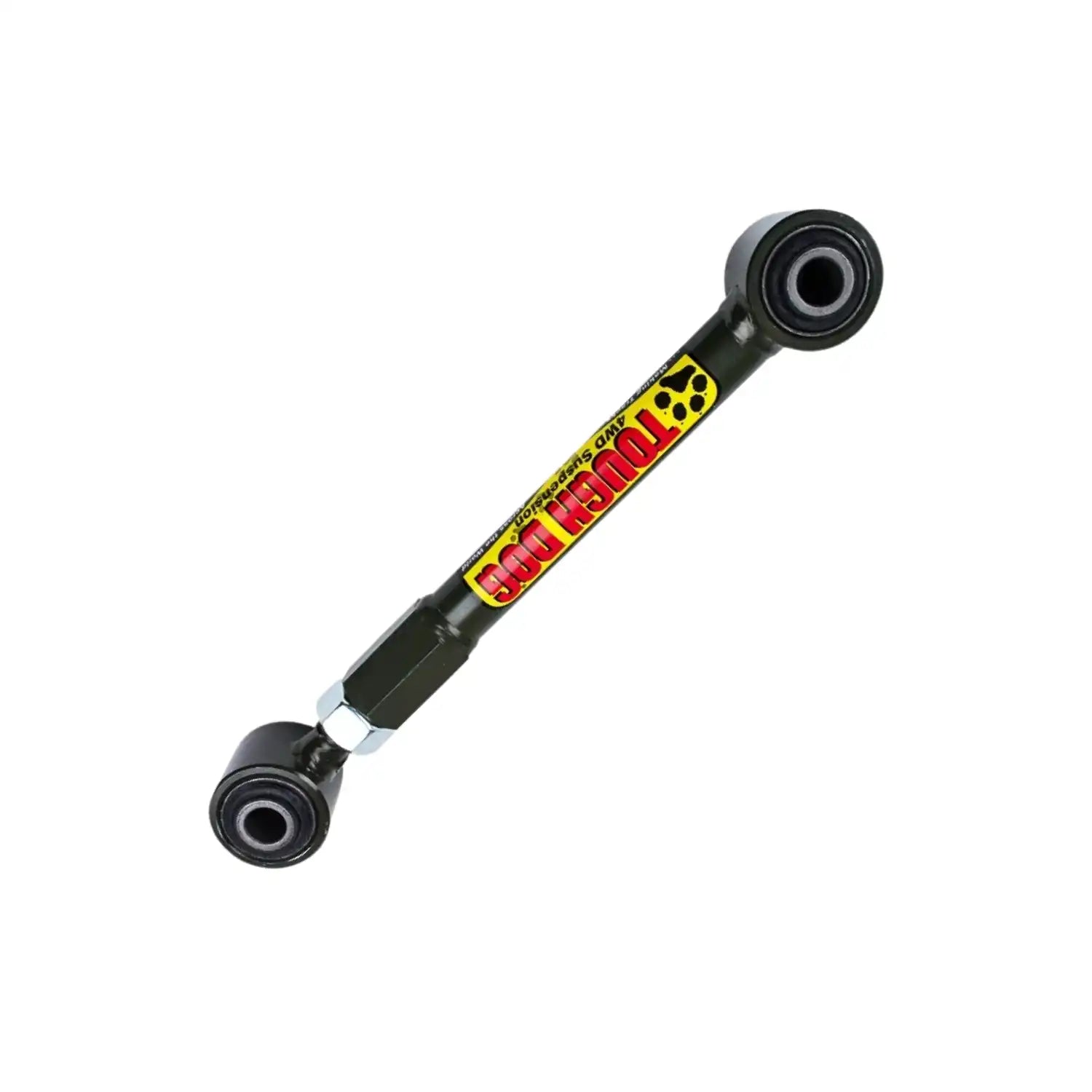

Panhard Rod TDPR-079 Specifications

Tough Dog Adjustable Panhard Rods are designed for maximum durability and feature thread adjustment for the ultimate precision.

Adjustable Panhard Rods allow the axle to be re-centred under the vehicle after the height has been modified. Tough Dog panhard rods are bent from a single solid bar for strength, and are adjustable to cover a broad range of vehicle heights.
