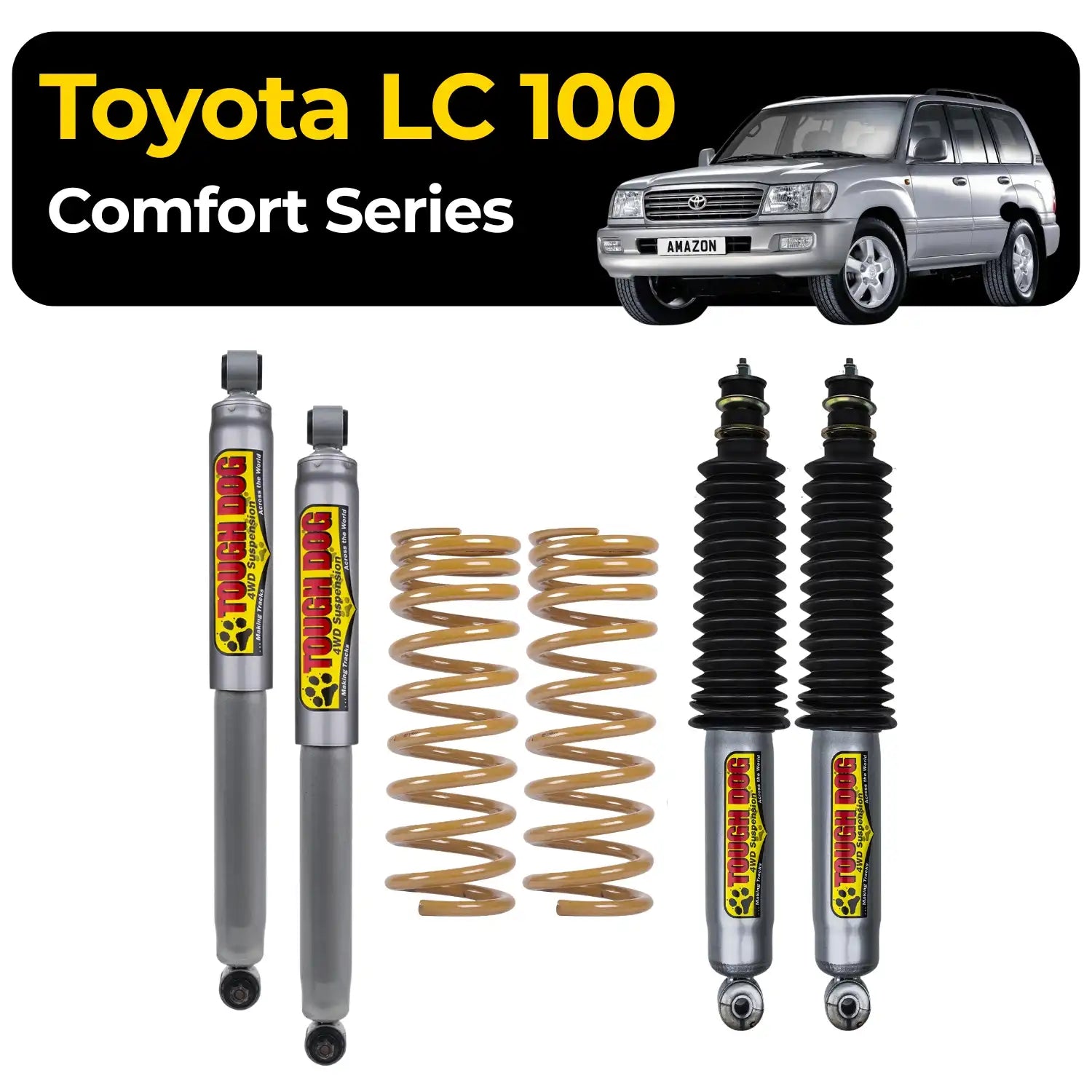

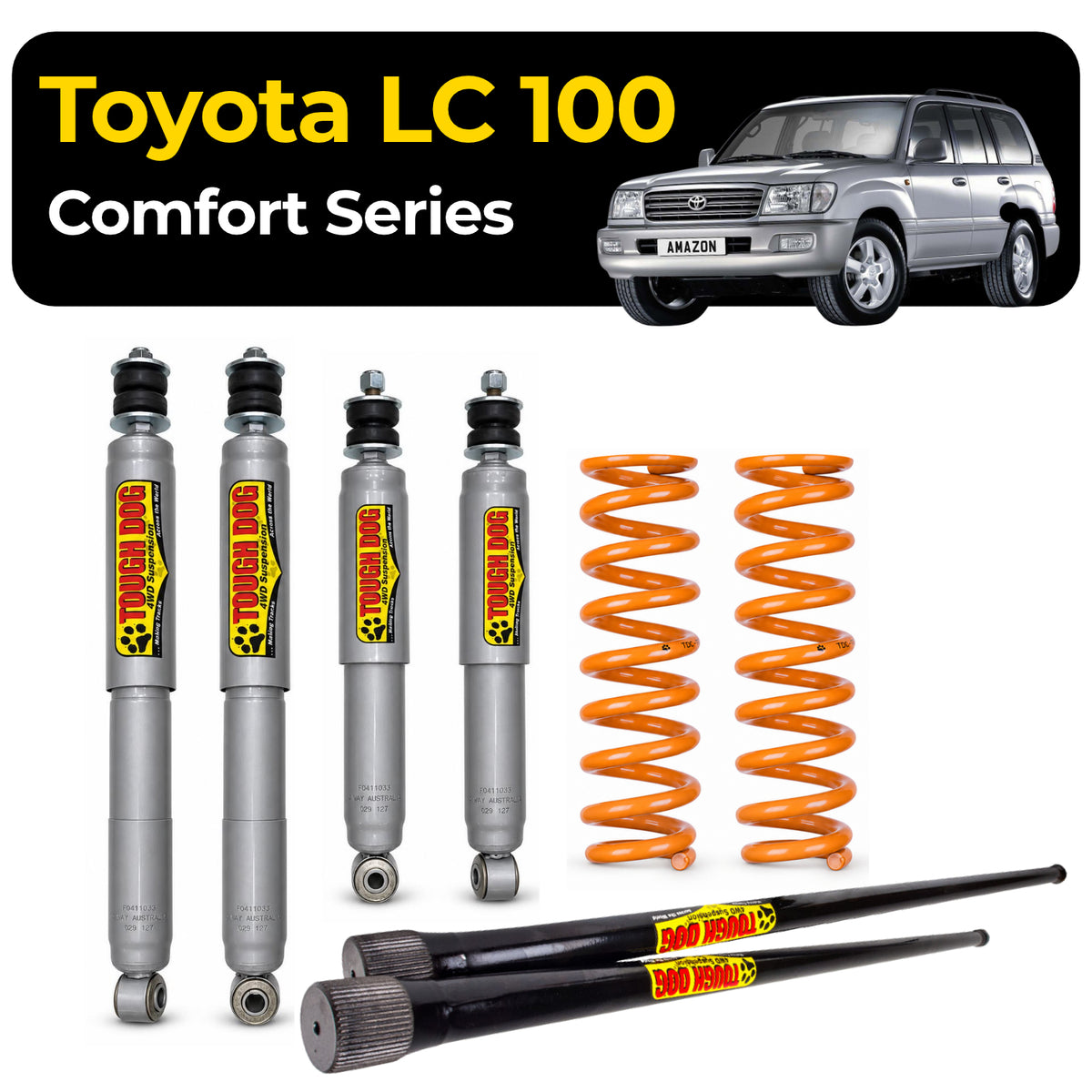

Tough Dog Suspension Toyota Landcruiser 100 Series Cygnus - 40mm Lift Foam Cell Comfort Series

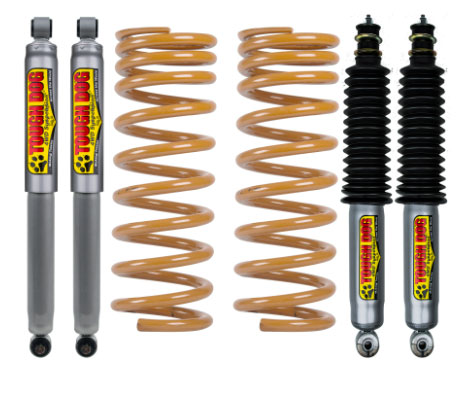

Kit Components

• Foam Cell Shock Absorber (FRONT) FC41103 x 2
• Foam Cell Shock Absorber (REAR) FC41114 x 2

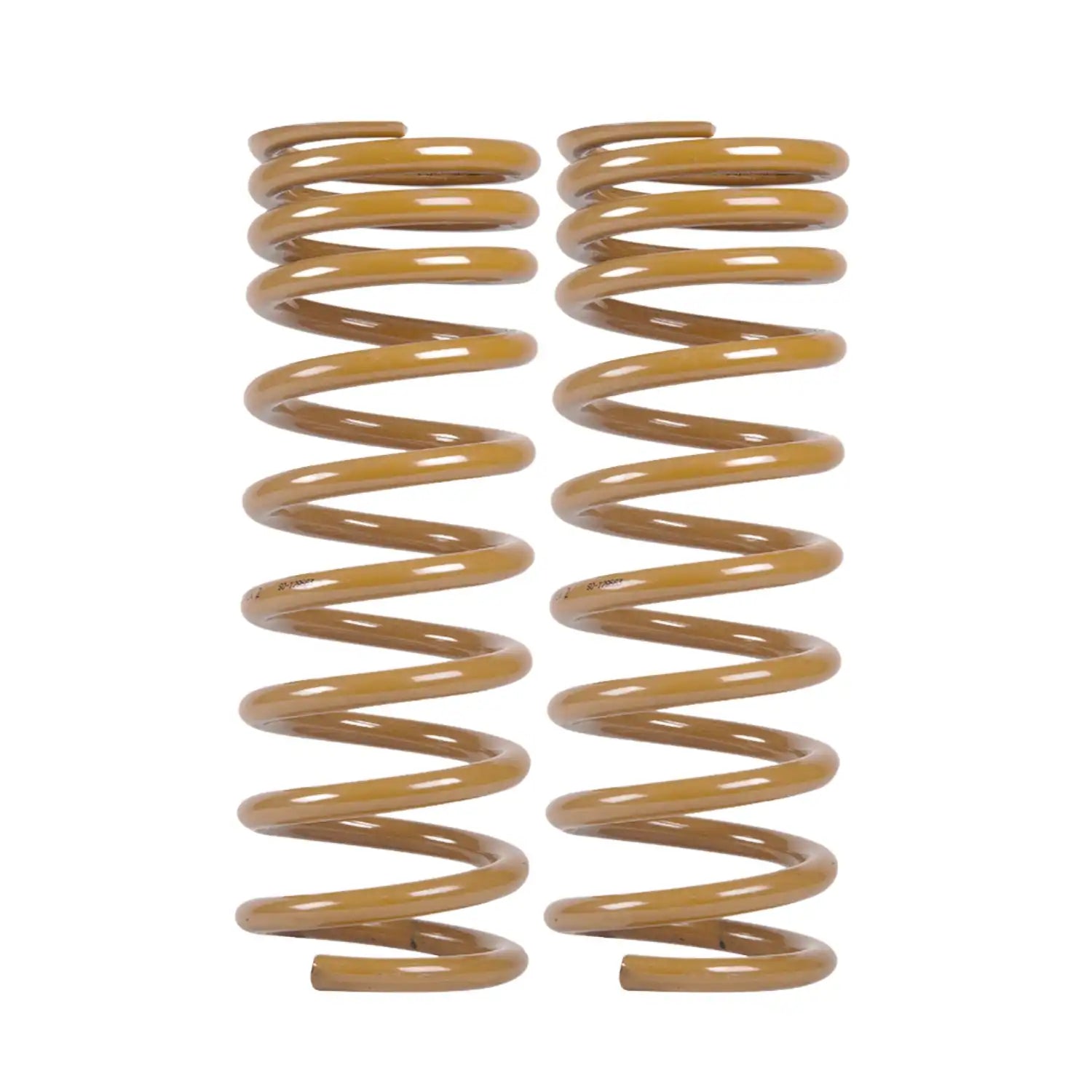

• 0-300KG Rear Coil Springs (Pair) 1998 - 2007 100 Series IFS - 25mm
  Lift (REAR) TDC949L x 1
  Torsion Bars (Pair) (FRONT) 4WTB-1610 x 1

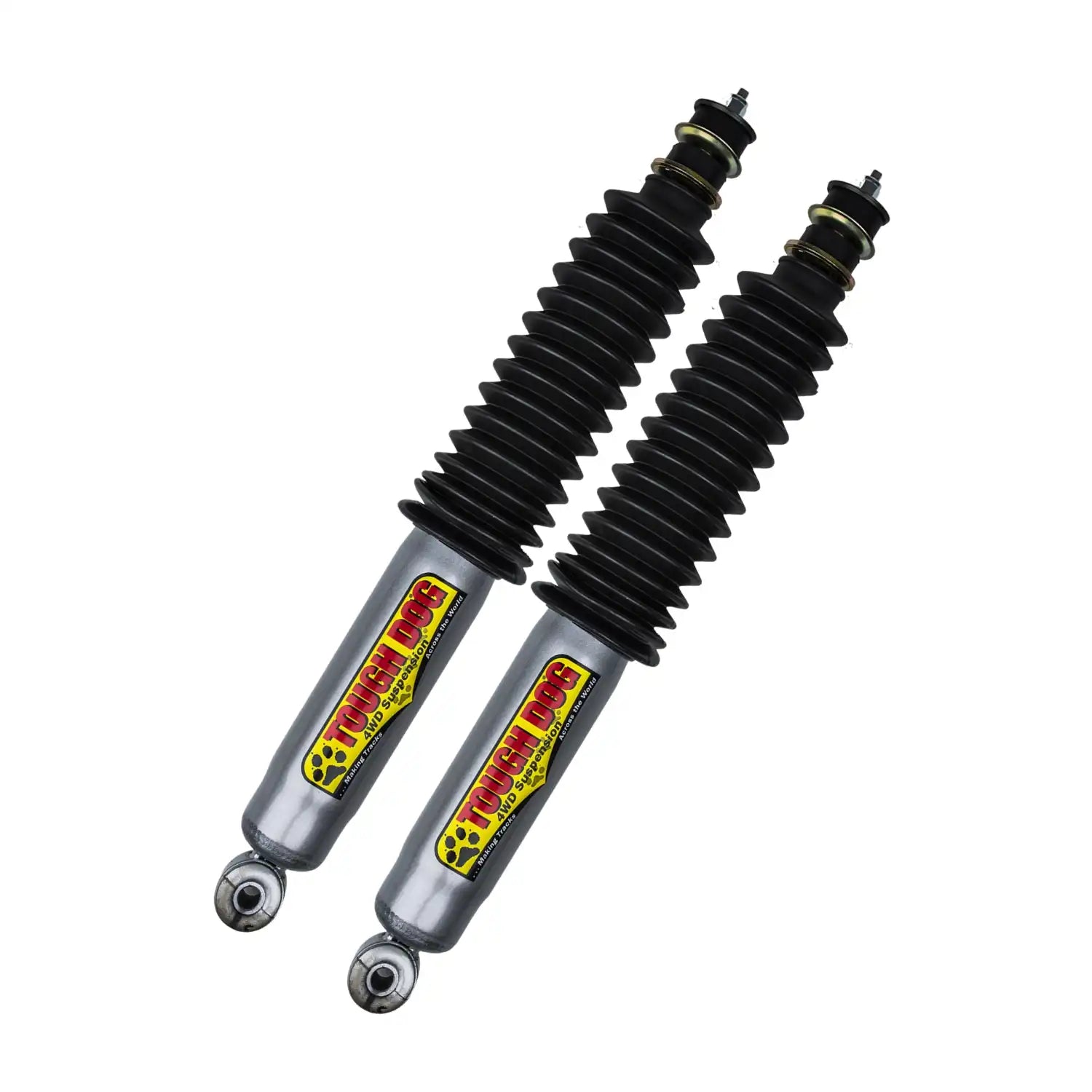

Foam Cell Shock Absorber (FRONT) FC41103

• Large 41mm internal bore
• Twin tube design
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

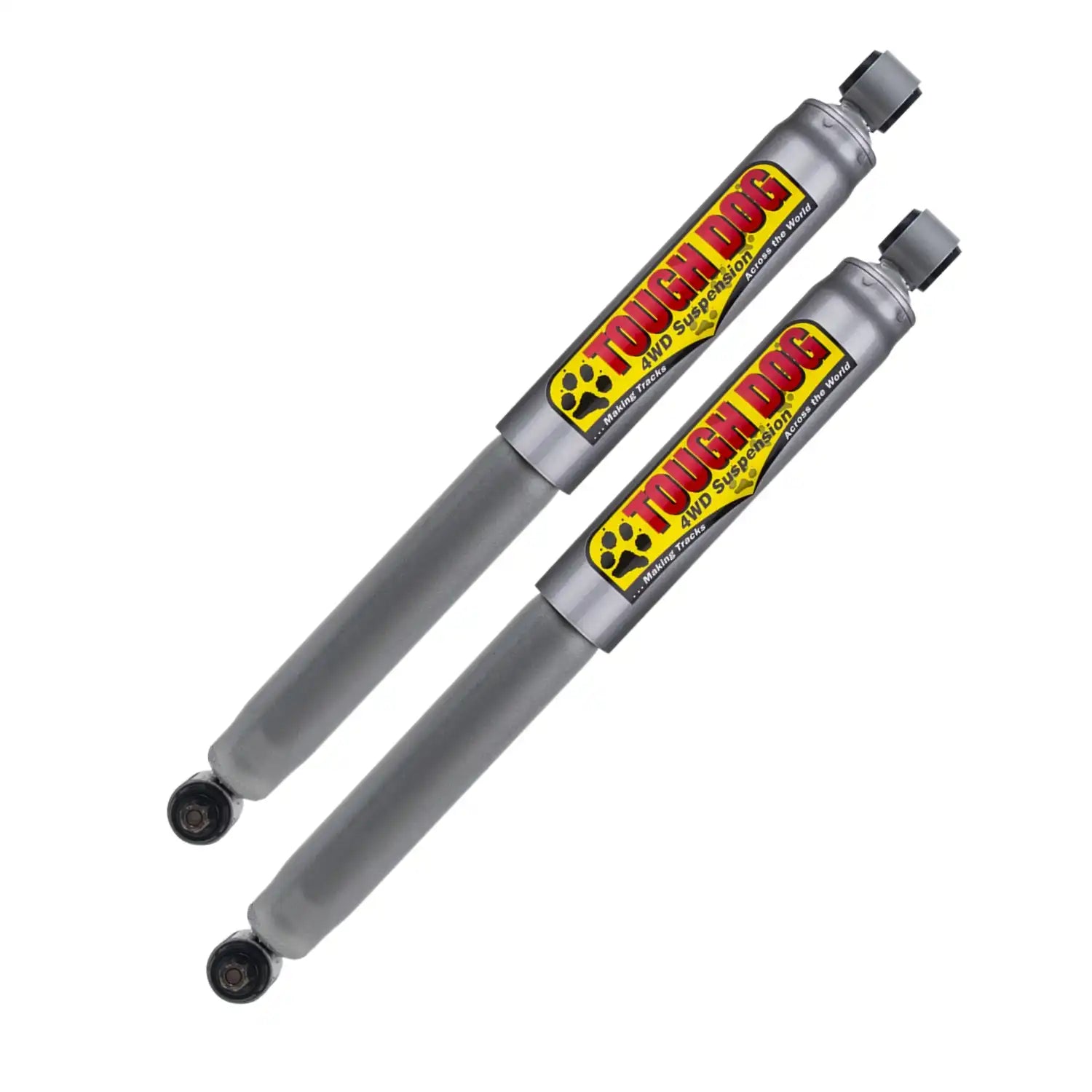

Foam Cell Shock Absorber (REAR) FC41114

• Large 41mm internal bore
• Twin tube design
• High temperature, all weather oil
• 18mm, double chrome-plated rod
• Additional welding on all studs & eyerings
• Multi stage Velocity Sensitive Valving
• Rod wiper seal and multi lip seal
• Hydraulic rebound stop

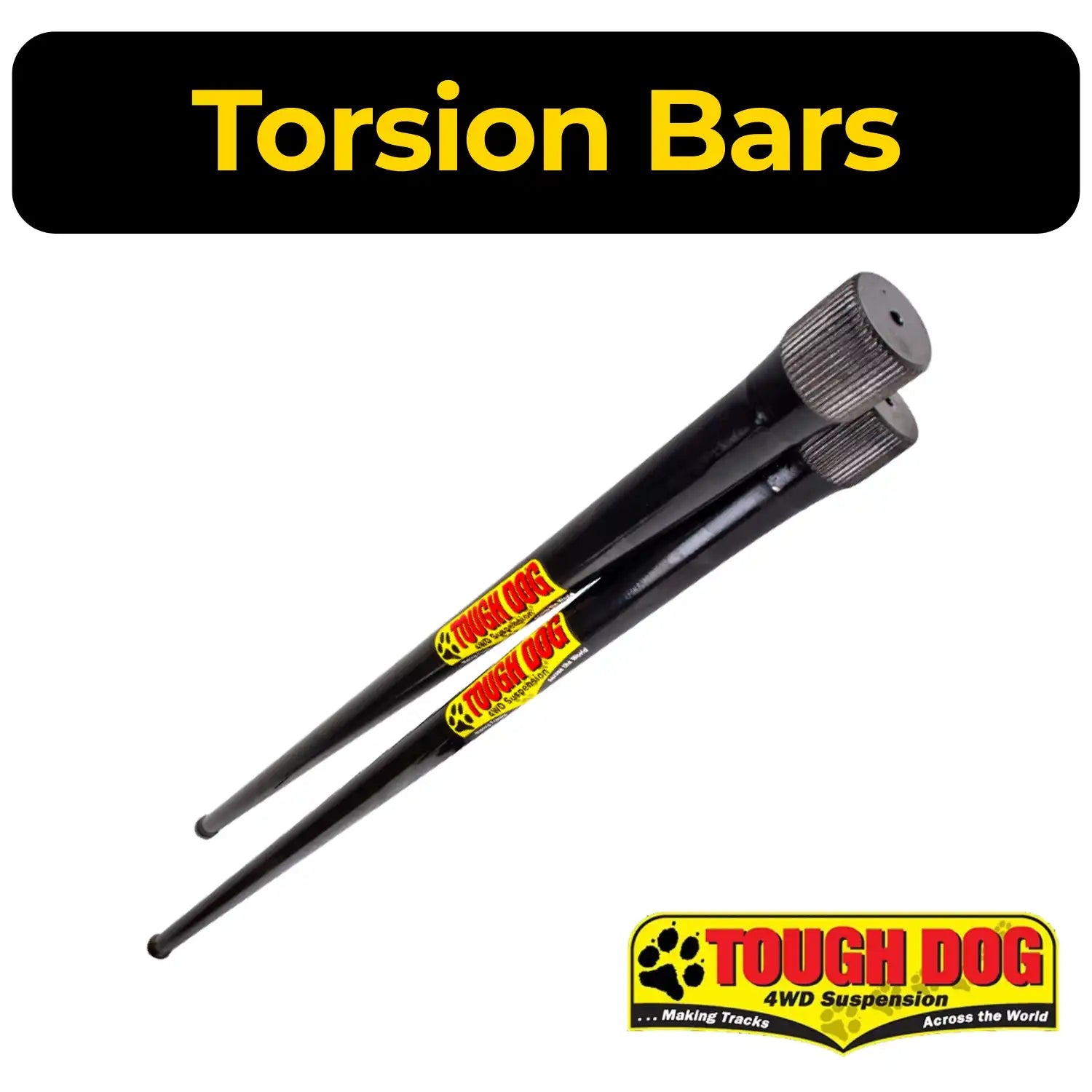

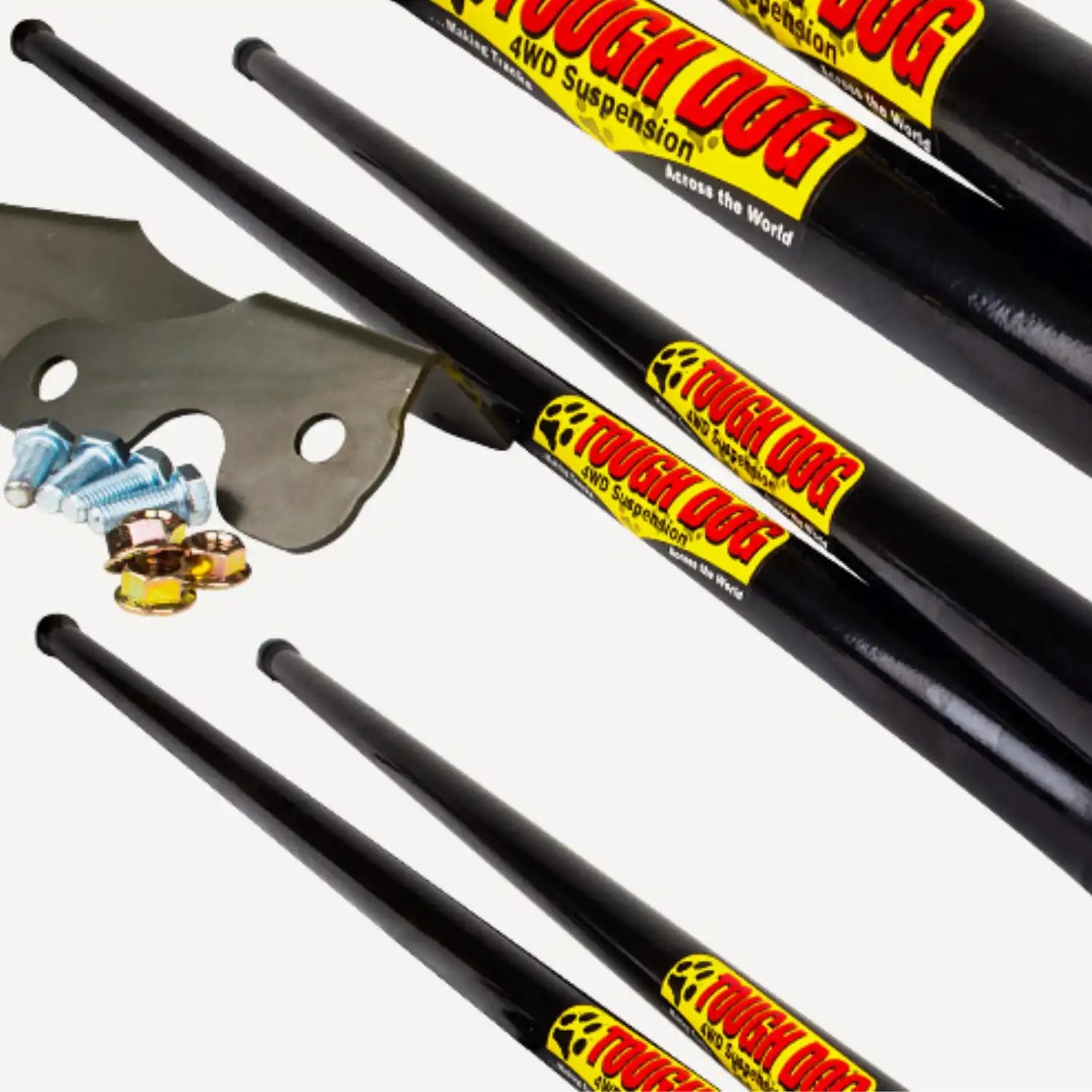

  Torsion Bars (Pair) (FRONT) 4WTB-1610

  Tough Dog Performance 4WD Torsion Bars offer a spring rate that is approximately 30% higher than OEM bars.

  • This dynamic increase in spring rate eliminates hard bottoming out when travelling off road and gives better handling in street applications.
  • They can be installed with a moderate pre-load to raise the vehicle for better clearance off road, or to revitalise the handling characteristics at the standard height.
  • These performance-proven, easy-to-install bars are especially beneficial when oversize tyres or frontal accessories are installed. Regardless of the torsion bar used, or the accessories fitted, a minimum 60mm of suspension droop (down travel) must be maintained.

  Specifications

  32mm/1210mm (For Diesel) Adjust Torsion bars after fitting shocks - Ensure a minimum of 60mm Droop is Maintained 4WTB-1610-BKT Required with torsion bars

  Compatibility

  Toyota Landcruiser 1998 - 2007 100 Series (IFS) Diesel ONLY
